前言

这两天正好安装了 Oracle 26ai 的单机和 RAC 环境，想着正好可以搭建一套 DataGuard 环境玩玩，说干就干！

数据库安装可参考以下两篇：

本文不再赘述数据库安装相关内容。

ADG 搭建

依然采用使用 Duplicate 在线复制的方式搭建 ADG，无需 RMAN 备份，可以通过 RMAN Duplicate 直接在线从主库拷贝文件。

本文搭建步骤均来自 100天精通Oracle 实战系列 课程。

环境信息

组件 主库 (RAC) 备库 (单机)
主机名 rac01, rac02 orcldg
IP地址 10.168.1.165 10.168.1.25
数据库名 orcl orcldg
DB_UNIQUE_NAME orcl orcldg
版本 Oracle 26ai Oracle 26ai

hosts 配置

1
2
3
4
5
# 所有节点配置 hosts 解析
cat << EOF >> /etc/hosts
10.168.1.165   rac-scan
10.168.1.25    orcldg
EOF

主库配置

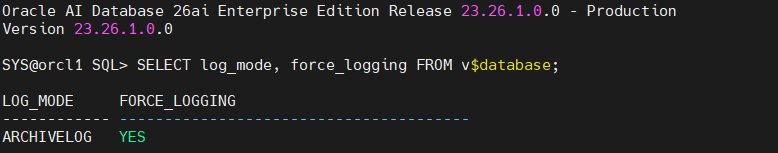

主库开启归档和强制日志

搭建 DataGuard 必须要开启归档模式和强制日志模式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
-- 检查当前状态
SELECT log_mode, force_logging FROM v$database;

-- 开启归档模式（如未开启）
SHUTDOWN IMMEDIATE;
STARTUP MOUNT;
ALTER DATABASE ARCHIVELOG;
ALTER DATABASE OPEN;

-- 开启强制日志
ALTER DATABASE FORCE LOGGING;

-- 确认配置生效
SELECT log_mode, force_logging FROM v$database;

配置 Standby Redo Logs

Standby Redo Logs 数量为 (Online Redo Logs + 1) × Threads：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
-- 查看在线日志配置
SELECT thread#, group#, bytes/1024/1024 size_mb, members
FROM v$log
ORDER BY thread#, group#;

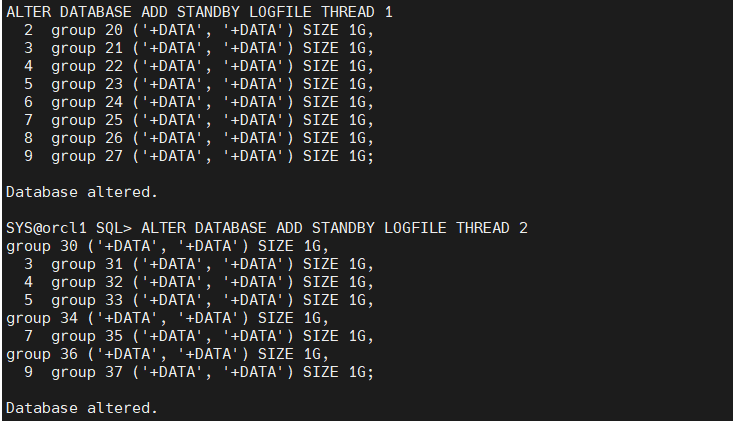

-- 为每个线程添加Standby Redo Logs
-- Thread 1 (假设在线日志组数=7，大小=1GB)
ALTER DATABASE ADD STANDBY LOGFILE THREAD 1
GROUP 20 ('+DATA', '+DATA') SIZE 1G,
GROUP 21 ('+DATA', '+DATA') SIZE 1G,
GROUP 22 ('+DATA', '+DATA') SIZE 1G,
GROUP 23 ('+DATA', '+DATA') SIZE 1G,
GROUP 24 ('+DATA', '+DATA') SIZE 1G,
GROUP 25 ('+DATA', '+DATA') SIZE 1G,
GROUP 26 ('+DATA', '+DATA') SIZE 1G,
GROUP 27 ('+DATA', '+DATA') SIZE 1G;

-- Thread 2
ALTER DATABASE ADD STANDBY LOGFILE THREAD 2
GROUP 30 ('+DATA', '+DATA') SIZE 1G,
GROUP 31 ('+DATA', '+DATA') SIZE 1G,
GROUP 32 ('+DATA', '+DATA') SIZE 1G,
GROUP 33 ('+DATA', '+DATA') SIZE 1G,
GROUP 34 ('+DATA', '+DATA') SIZE 1G,
GROUP 35 ('+DATA', '+DATA') SIZE 1G,
GROUP 36 ('+DATA', '+DATA') SIZE 1G,
GROUP 37 ('+DATA', '+DATA') SIZE 1G;

-- 验证Standby Redo Logs
SELECT thread#, group#, bytes/1024/1024 size_mb, status
FROM v$standby_log
ORDER BY thread#, group#;

生成并准备密码文件

rac 的密码文件通常存放于 ASM 盘中，查看对应的密码文件位置：

1
srvctl config database -d orcl | grep PASSWORD

使用 asmcmd 进入到 ASM 磁盘组：

1
2
3
# 从 ASM 复制到文件系统
asmcmd -p
ASMCMD [+] > pwcopy +DATA/RPTDB/PASSWORD/pwdrptdb.256.1180304871 /home/grid/

将密码文件拷贝到备库，并且重命名，命名规则为 orapw+sid：

1
2
3
chown oracle:oinstall /home/grid/pwdorcl.256.1223761825
mv /home/grid/pwdorcl.256.1223761825 /home/oracle/orapworcldg
scp /home/oracle/orapworcldg  oracle@10.168.1.25:/u01/app/oracle/product/26.1.0/db/dbs/

生成参数文件

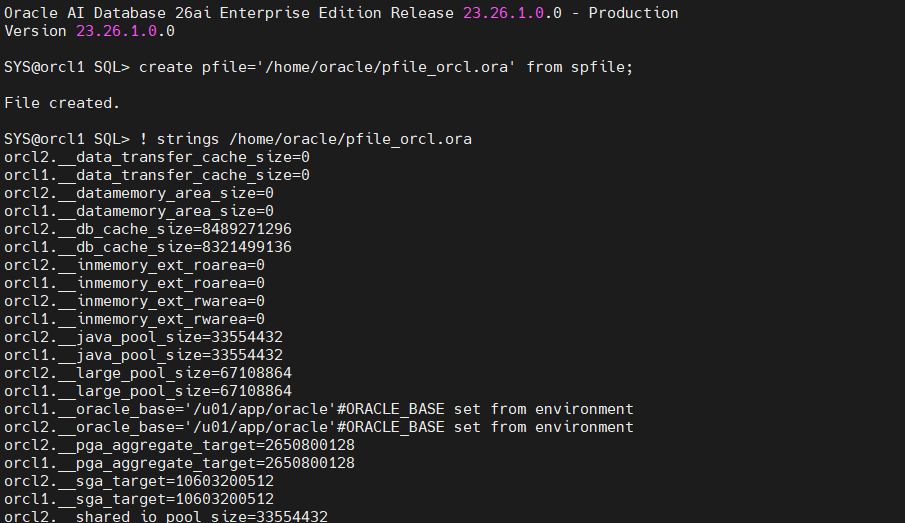

使用 RMAN 备份在备库恢复，需要在主库生成参数文件：

1
2
-- 在主库生成参数文件
CREATE PFILE='/home/oracle/pfile_orcl.ora' FROM SPFILE;

备库配置

创建参数文件

将主库生成并修改后的参数文件在备库创建初始化参数文件（这里建议源端目标端均使用 OMF）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
## 在备库创建初始化参数文件
cat<<-\EOF>$ORACLE_HOME/dbs/initorcldg.ora
*._b_tree_bitmap_plans=FALSE
*._cleanup_rollback_entries=2000
*._optimizer_adaptive_cursor_sharing=FALSE
*._optimizer_extended_cursor_sharing='NONE'
*._optimizer_extended_cursor_sharing_rel='NONE'
*._optimizer_use_feedback=FALSE
*._undo_autotune=FALSE
*.compatible='23.6.0'
*.control_file_record_keep_time=31
*.control_files='/oradata/ORCL/CONTROLFILE/control01.ctl','/oradata/ORCL/CONTROLFILE/control02.ctl'
*.db_block_size=8192
*.db_create_file_dest='/oradata'
*.db_files=5000
*.db_name='orcl'
*.deferred_segment_creation=FALSE
*.diagnostic_dest='/u01/app/oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=orcldgXDB)'
*.enable_pluggable_database=true
*.event='28401 trace name context forever,level 1','10949 trace name context forever,level 1'
*.log_archive_format='%t_%s_%r.dbf'
*.nls_language='SIMPLIFIED CHINESE'
*.nls_territory='CHINA'
*.open_cursors=1000
*.parallel_force_local=TRUE
*.parallel_max_servers=64
*.pga_aggregate_target=2643460096
*.processes=2000
*.remote_login_passwordfile='exclusive'
*.session_cached_cursors=300
*.sga_max_size=10575937536
*.sga_target=10575937536
*.undo_retention=10800
*.undo_tablespace='UNDOTBS1'
*.db_unique_name='orcldg'
*.fal_client='ORCL_STB'
*.fal_server='ORCL_PRI'
*.log_archive_config='dg_config=(orcl,orcldg)'
*.log_archive_dest_1='LOCATION=/oradata/archivelog VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=ORCLDG'
*.log_archive_dest_2='SERVICE=ORCL_PRI VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=ORCL'
*.standby_file_management='AUTO'
EOF

创建目录结构

备库根据参数文件在两个节点均创建必要的目录：

1
2
3
4
5
# 创建必要目录
mkdir -p /oradata/ORCL/{CONTROLFILE,DATAFILE,ONLINELOG}
mkdir -p /oradata/archivelog
chown -R oracle:oinstall /oradata
chmod -R 755 /oradata

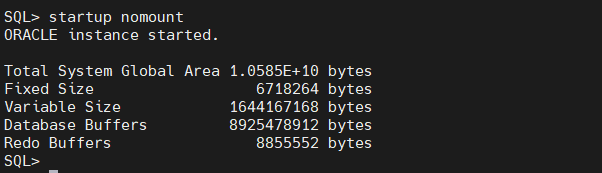

启动备库到 NOMOUNT

打开备库到 nomount 状态：

1
2
3
4
5
-- 创建SPFILE
CREATE SPFILE FROM PFILE;

-- 启动到NOMOUNT状态
STARTUP NOMOUNT;

配置 TNS

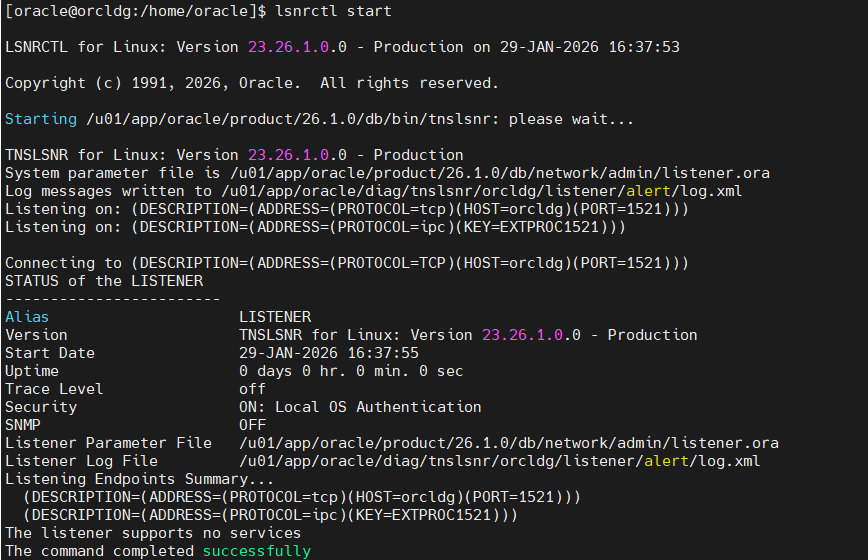

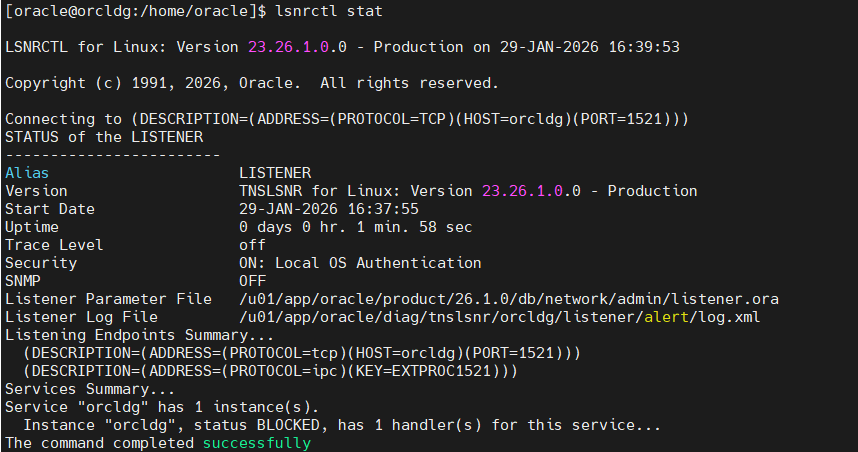

备库启动监听：

1
2
3
4
# 启动监听
lsnrctl start
## 等一段时间或者手动注册监听，再次查看监听状态
lsnrctl stat

配置 TNSNAMES.ORA：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
## 所有节点均配置 TNS
cat >> $ORACLE_HOME/network/admin/tnsnames.ora << 'EOF'
ORCL_PRI =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 10.168.1.165)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orcl)
    )
  )

ORCL_STB =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 10.168.1.25)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orcldg)
      (UR=A)
    )
  )
EOF

# 测试连接
tnsping ORCL_PRI
tnsping ORCL_STB

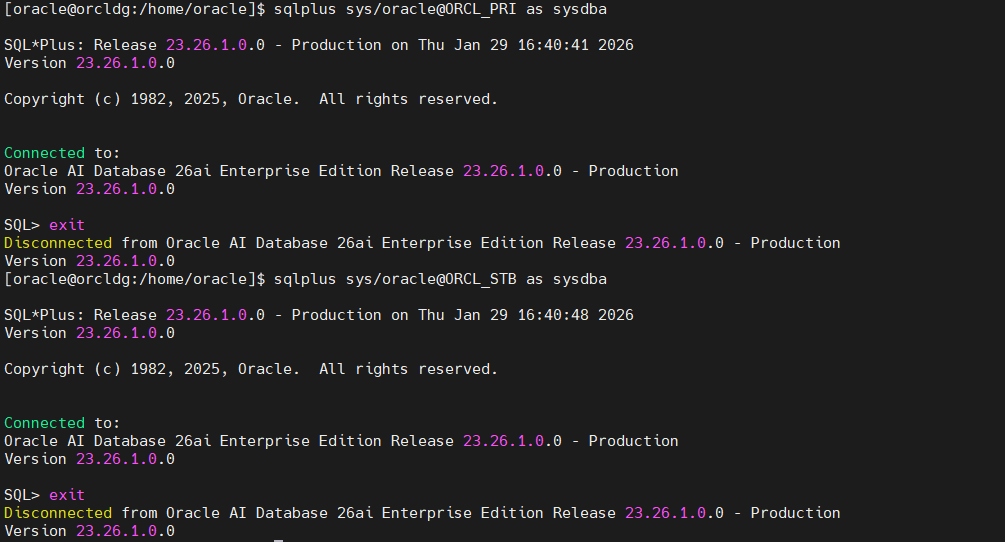

# 验证数据库连接
sqlplus sys/oracle@ORCL_PRI as sysdba
sqlplus sys/oracle@ORCL_STB as sysdba

RMAN在线复制

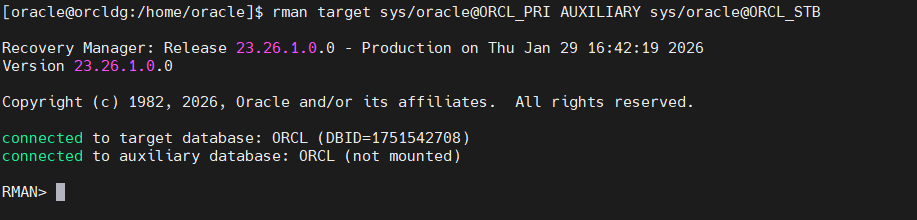

rman 同时连接主备库：

1
[oracle@orcldg:/home/oracle]$ rman target sys/oracle@ORCL_PRI AUXILIARY sys/oracle@ORCL_STB

执行 duplicate 命令：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RMAN> run {
allocate channel prmy1 type disk;
allocate channel prmy2 type disk;
allocate channel prmy3 type disk;
allocate channel prmy4 type disk;
allocate channel prmy5 type disk;
allocate channel prmy6 type disk;
allocate auxiliary channel aux1 type disk;
allocate auxiliary channel aux2 type disk;
allocate auxiliary channel aux3 type disk;
allocate auxiliary channel aux4 type disk;
allocate auxiliary channel aux5 type disk;
allocate auxiliary channel aux6 type disk;
duplicate target database for standby from active database dorecover nofilenamecheck;
}

等待 RMAN duplicate 复制完成即可。

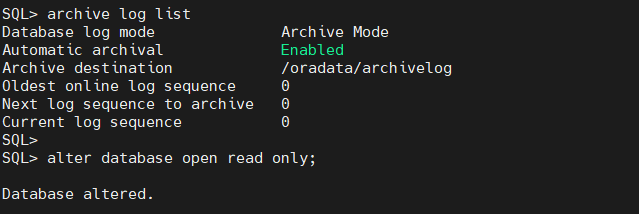

打开备库只读

1
2
SQL> alter database open read only;
SQL> alter pluggable database all open;

备库开启日志应用

1
2
3
SQL> alter database recover managed standby database using current logfile disconnect;

Database altered.

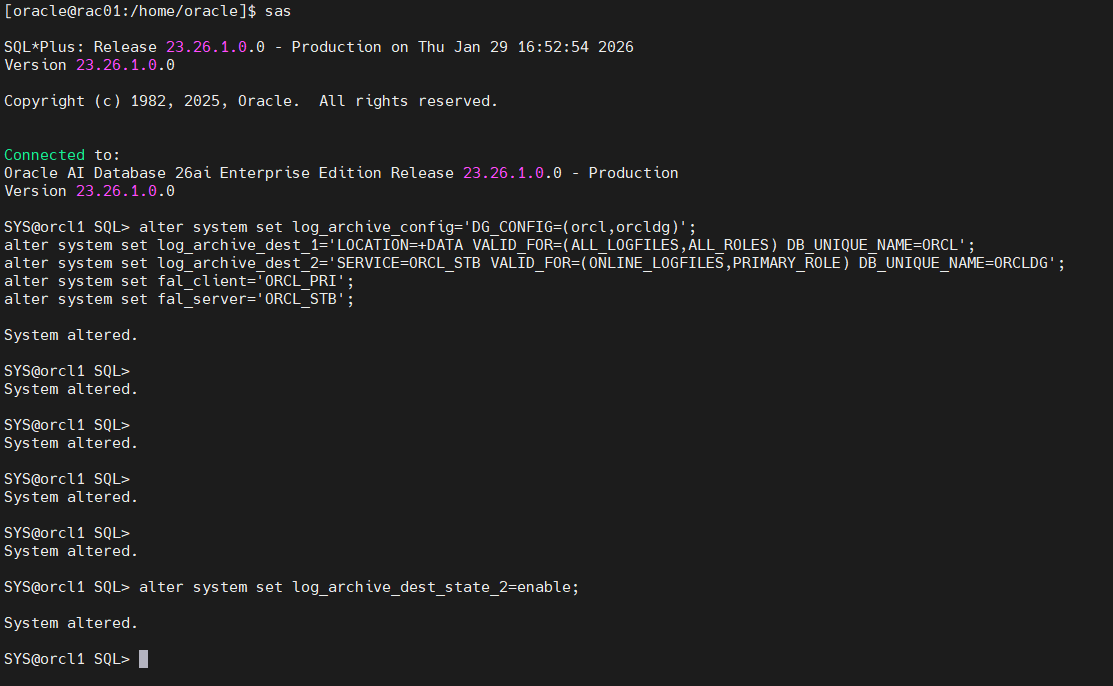

主库设置 ADG 参数

1
2
3
4
5
6
7
alter system set log_archive_config='DG_CONFIG=(orcl,orcldg)';
alter system set log_archive_dest_1='LOCATION=+DATA VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=ORCL';
alter system set log_archive_dest_2='SERVICE=ORCL_STB VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=ORCLDG';
alter system set fal_client='ORCL_PRI';
alter system set fal_server='ORCL_STB';
alter system set log_archive_dest_state_2=defer;
alter system set log_archive_dest_state_2=enable;

检查同步情况

1
2
3
4
5
6
7
8
9

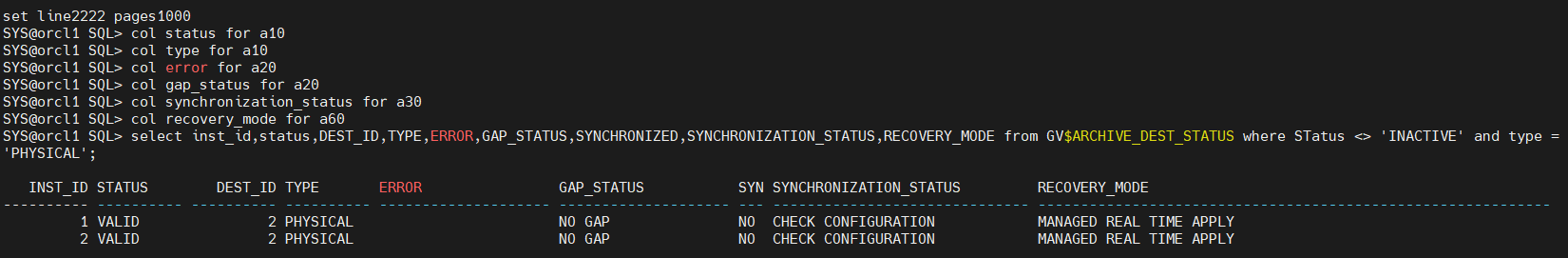

-- 主库
SQL> set line2222 pages1000
col status for a10
col type for a10
col error for a20
col gap_status for a20
col synchronization_status for a30
col recovery_mode for a60
select inst_id,status,DEST_ID,TYPE,ERROR,GAP_STATUS,SYNCHRONIZED,SYNCHRONIZATION_STATUS,RECOVERY_MODE from GV$ARCHIVE_DEST_STATUS where STatus <> 'INACTIVE' and type = 'PHYSICAL';

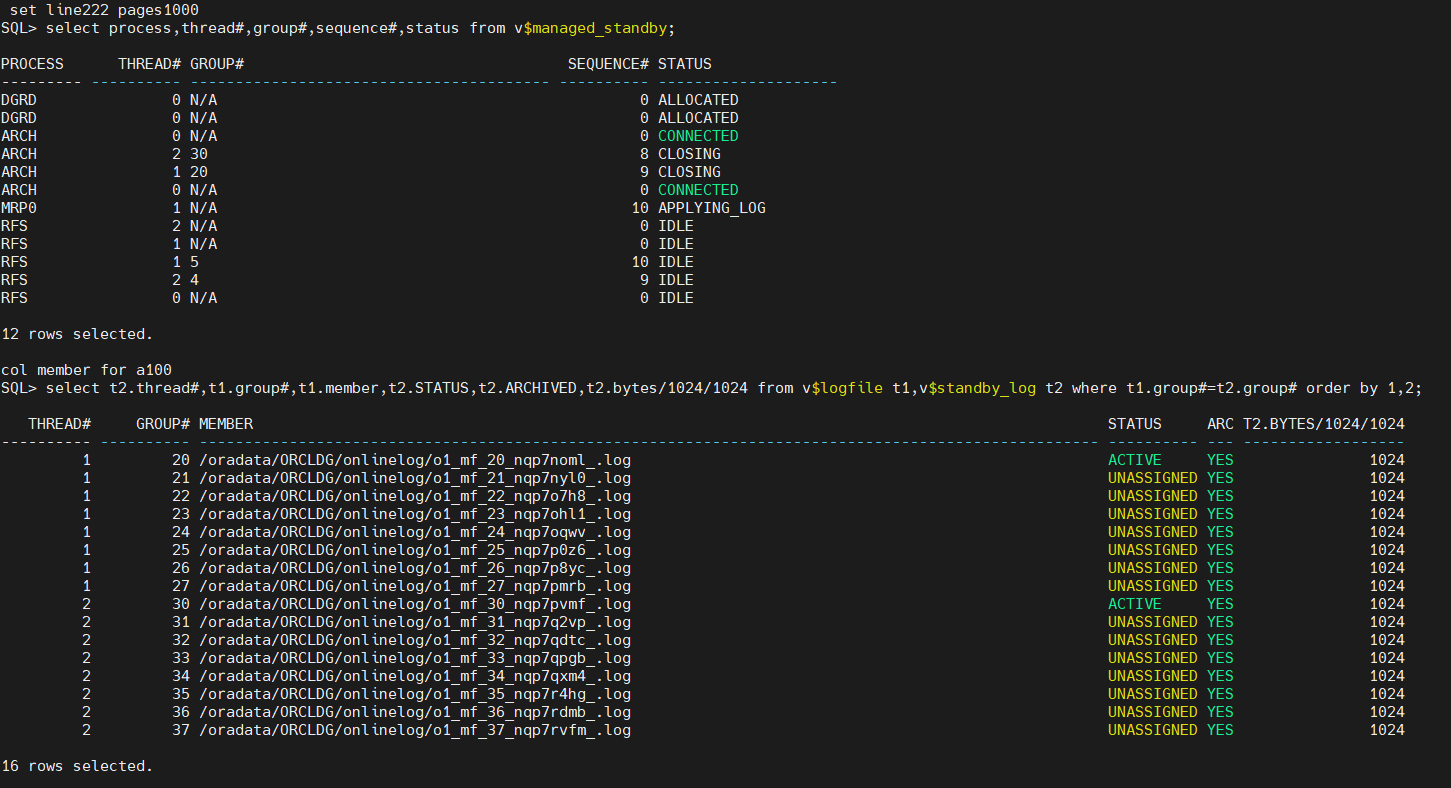

备库：

1
2
3
4
5
SQL> set line222 pages1000
select process,thread#,group#,sequence#,status from v$managed_standby;

SQL> col member for a100
select t2.thread#,t1.group#,t1.member,t2.STATUS,t2.ARCHIVED,t2.bytes/1024/1024 from v$logfile t1,v$standby_log t2 where t1.group#=t2.group# order by 1,2;

至此，ADG 搭建完成，备库可用于报表查询。

主备同步验证

在主库创建一个 PDB：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
-- 创建PDB
CREATE PLUGGABLE DATABASE testpdb ADMIN USER admin IDENTIFIED BY oracle;

-- 打开PDB
ALTER PLUGGABLE DATABASE testpdb OPEN;
ALTER PLUGGABLE DATABASE testpdb SAVE STATE;

-- 连接到新创建的 PDB
ALTER SESSION SET CONTAINER=testpdb;

-- 创建测试用户
CREATE USER testuser IDENTIFIED BY oracle;
GRANT dba TO testuser;

-- 创建测试表
CREATE TABLE testuser.employees (
    id NUMBER PRIMARY KEY,
    name VARCHAR2(50),
    department VARCHAR2(30),
    salary NUMBER,
    hire_date DATE
);

-- 插入测试数据
INSERT INTO testuser.employees VALUES (1, 'John Doe', 'IT', 5000, SYSDATE-100);
INSERT INTO testuser.employees VALUES (2, 'Jane Smith', 'HR', 4500, SYSDATE-50);
INSERT INTO testuser.employees VALUES (3, 'Bob Johnson', 'Sales', 4000, SYSDATE-30);

COMMIT;

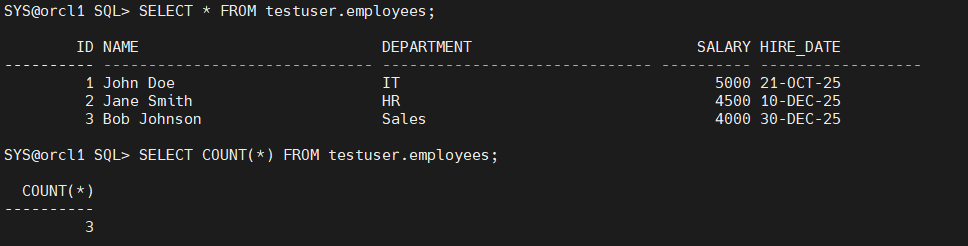

-- 验证数据
SELECT * FROM testuser.employees;
SELECT COUNT(*) FROM testuser.employees;

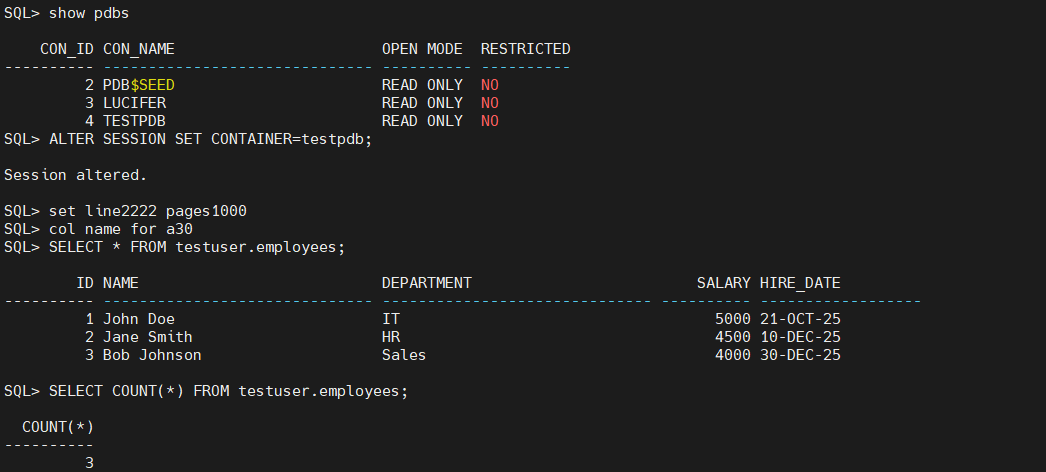

备库验证数据：

1
2
3
4
5
6
7
8
9
10
11
12
-- 启动 PDB
SQL> alter pluggable database testpdb open;

-- 查看 PDB
SQL> show pdbs

-- 切换到 PDB
ALTER SESSION SET CONTAINER=testpdb;

-- 查询数据
SELECT * FROM testuser.employees;
SELECT COUNT(*) FROM testuser.employees;

主备 SwitchOver 切换

切换前检查

查看主备库同步进程状态：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

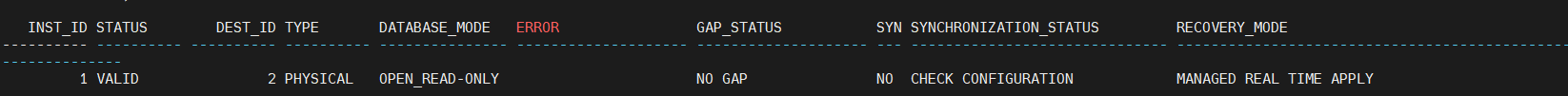

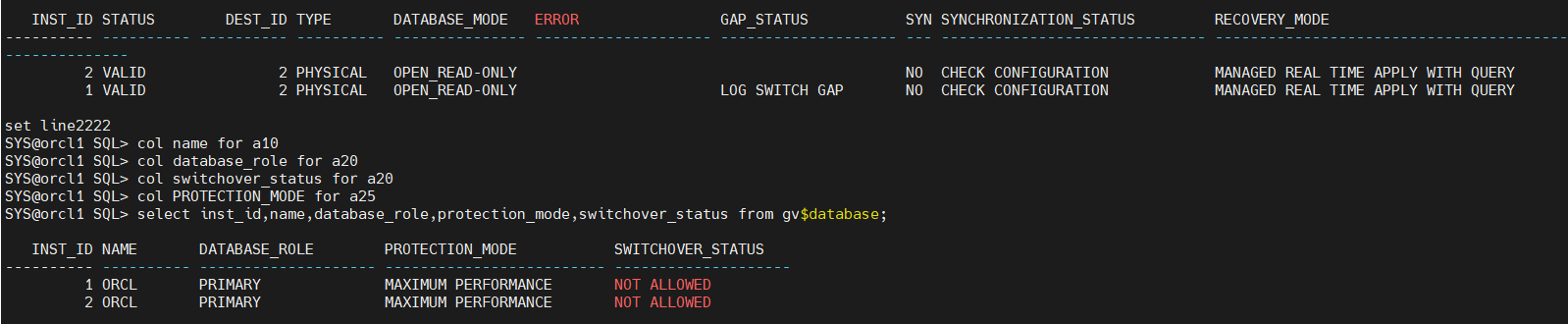

-- 主库
SQL> set line2222
col status for a10
col type for a10
col error for a20
col gap_status for a20
col synchronization_status for a30
col recovery_mode for a60
select inst_id,status,DEST_ID,TYPE,database_mode,ERROR,GAP_STATUS,SYNCHRONIZED,SYNCHRONIZATION_STATUS,RECOVERY_MODE from GV$ARCHIVE_DEST_STATUS where STatus <> 'INACTIVE' and type = 'PHYSICAL';

SQL> set line2222
col name for a10
col database_role for a20
col switchover_status for a20
col PROTECTION_MODE for a25
select inst_id,name,database_role,protection_mode,switchover_status from gv$database;

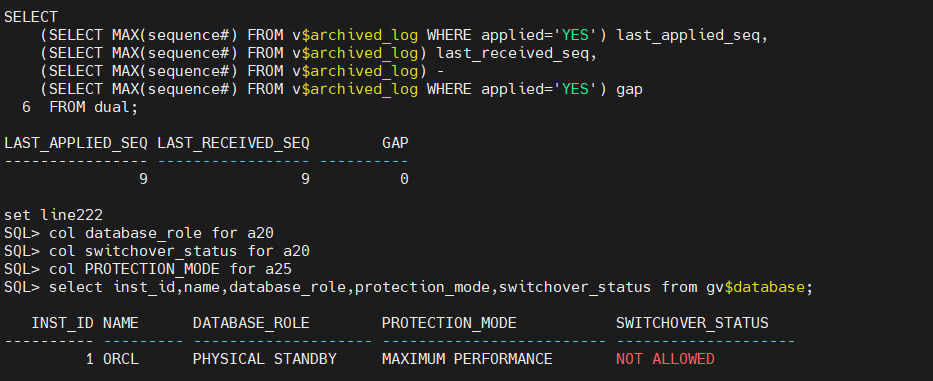

备库：

1
2
3
4
5
6
7
8
9
10
11
12
SQL> SELECT
    (SELECT MAX(sequence#) FROM v$archived_log WHERE applied='YES') last_applied_seq,
    (SELECT MAX(sequence#) FROM v$archived_log) last_received_seq,
    (SELECT MAX(sequence#) FROM v$archived_log) -
    (SELECT MAX(sequence#) FROM v$archived_log WHERE applied='YES') gap
FROM dual;

SQL> set line222
col database_role for a20
col switchover_status for a20
col PROTECTION_MODE for a25
select inst_id,name,database_role,protection_mode,switchover_status from gv$database;

主切换到备

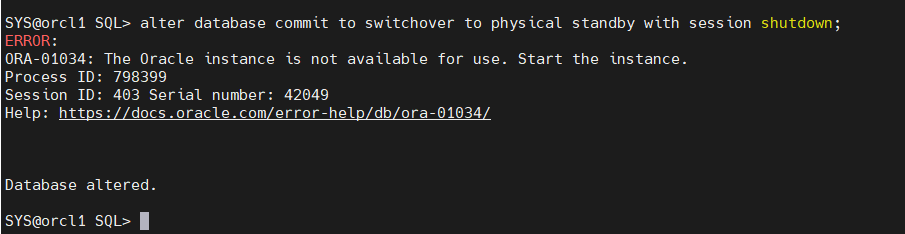

主库切换为备库 (期间观察主库 alert 日志)：

1
SQL> alter database commit to switchover to physical standby with session shutdown;

备切换到主

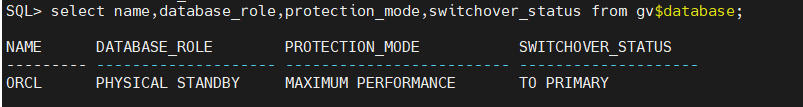

备库下检查是否可以切换为主库：

1
2
3
4
5
SQL> set line222
col database_role for a20
col switchover_status for a20
col PROTECTION_MODE for a25
select name,database_role,protection_mode,switchover_status from gv$database;

备库切换主库：

1
2
3
SQL> alter database commit to switchover to primary with session shutdown;

Database altered.

启动主备库

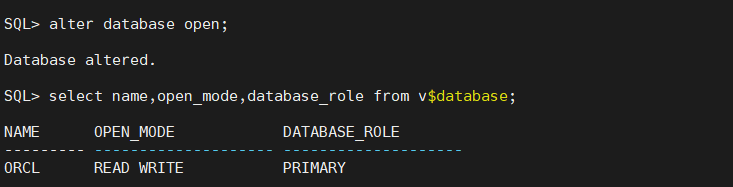

打开新的主库：

1
2
3
4
5
6
7
8
9
SQL> alter database open;

Database altered.

SQL> select name,open_mode,database_role from v$database;

NAME      OPEN_MODE            DATABASE_ROLE
--------- -------------------- ----------------
ORADB     READ WRITE           PRIMARY

打开新的备库：

1
2
3
4

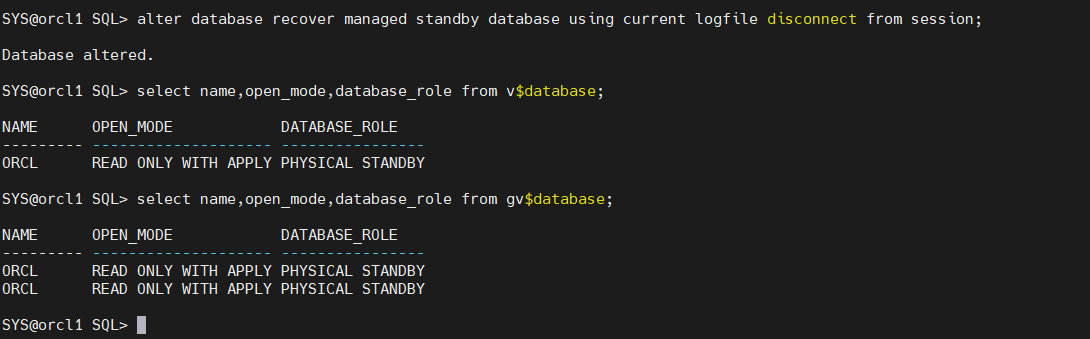

[oracle@rac01:/home/oracle]$ srvctl start db -d orcl

SQL> alter database recover managed standby database using current logfile disconnect from session;
SQL> select name,open_mode,database_role from gv$database;

检查同步情况

检查主备同步情况：

1
2
3
4
5
6
7
8
9
-- 主库
SQL> set line2222
col status for a10
col type for a10
col error for a20
col gap_status for a20
col synchronization_status for a30
col recovery_mode for a60
select inst_id,status,DEST_ID,TYPE,database_mode,ERROR,GAP_STATUS,SYNCHRONIZED,SYNCHRONIZATION_STATUS,RECOVERY_MODE from GV$ARCHIVE_DEST_STATUS where STatus <> 'INACTIVE' and type = 'PHYSICAL';

切换后主备同步正常，操作流程也较为简单。

总结

这篇文章是使用经典的架构去搭建和切换 ADG，所以还是比较顺利，但是我看 26ai 支持 PDB 级别的 ADG，后面有时间再学习一下。
