前言

昨天群里有位朋友分享了芬达大佬的 MySQL 部署工具：dbops，抱着试一试的心态玩了一把，确实很给力。今天给大家分享一下，完全免费哦！

介绍

dbops 是一套高效的 ansible playbook 集合，目前是一个可以自动化安装和部署生产级别的 MySQL 及周边生态的工具。dbops 正在持续迭代开发中，目前已经支持：

  • MySQL 5.7、8.0、8.4
  • openGauss 5.0

dbops 的理念：

  • 高效
    • 并发推送安装包，并发地部署数据库
    • 全自动化部署，无需人工干预
    • 安装包体积小，节省下载时间
  • 优雅
    • 采用 ansible-lint 做代码优化
    • 使用纯优雅语言编写(python)，尽量使用内置模块，避免使用 shell
  • 规范 （Code as Standrad）
    • MySQL 满足企业生产级规范

Code as Standrad 这个理念由芬达提出，目的是减少对部署规范文档的依赖，通过 playbook 编码来固定部署规范。如果你使用 dbops 进行部署，那就相当于满足了交维规范。

目前支持的数据库小版本的硬限制：

  • MySQL 5.7： >= 5.7.26
  • MySQL 8.0： >= 8.0.28
  • MySQL 8.4.0： >= 8.4.0
  • Percona 5.7: 暂未设限制
  • Percona 8.0: 暂未设限制
  • GreatSQL 8.0: 8.0.32-24、8.0.32-25
  • openGauss: == 5.0.0

请注意，这些仅仅是硬编码到 pre_tasks/validate_common_config_setting.yml 的硬限制，是由于作者没有测过小于等于这些版本。特殊需要时，用户也可以自行修改代码，放开限制。

支持的系统和数据库架构：

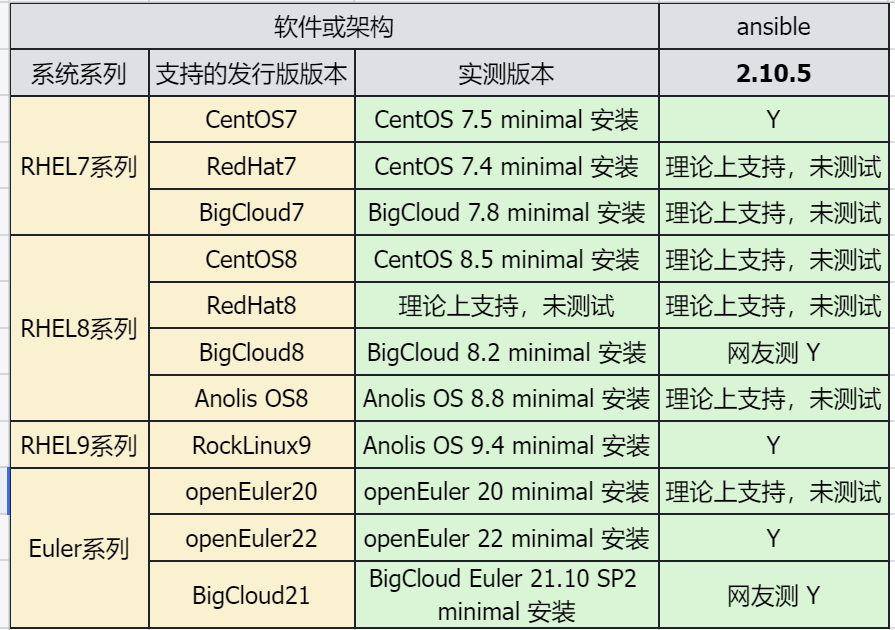

ansible：

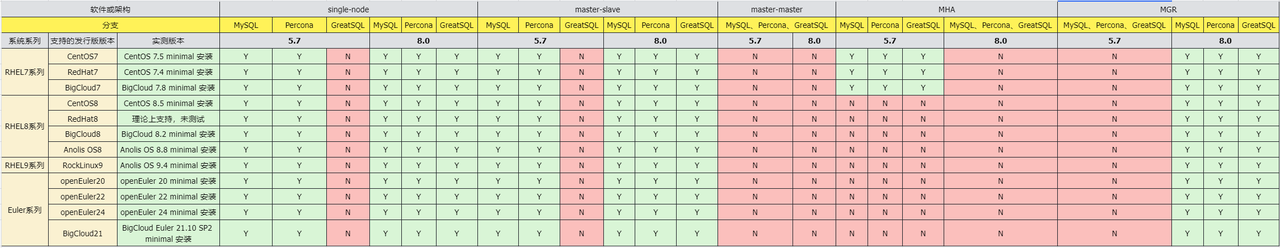

mysql-ansible：

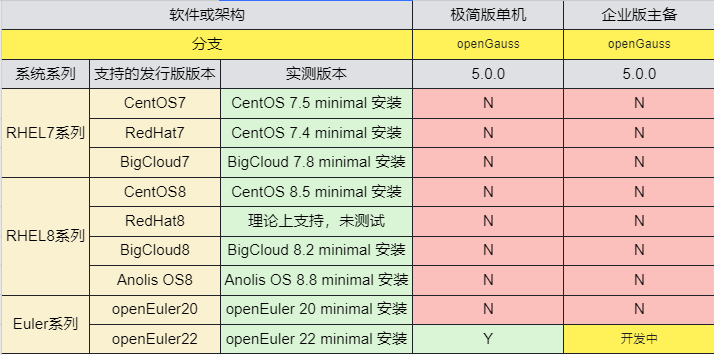

opengauss-ansible：

注意，作者在开发时已考虑了某些系统或版本的兼容性，经过判断后填写了 Y，但实际上并未进行过严格实测。

下载 dbops

这里建议下载稳定发行版，如果需要测试可以下载开发版进行尝鲜。

Gitee 下载地址：https://gitee.com/fanderchan/dbops

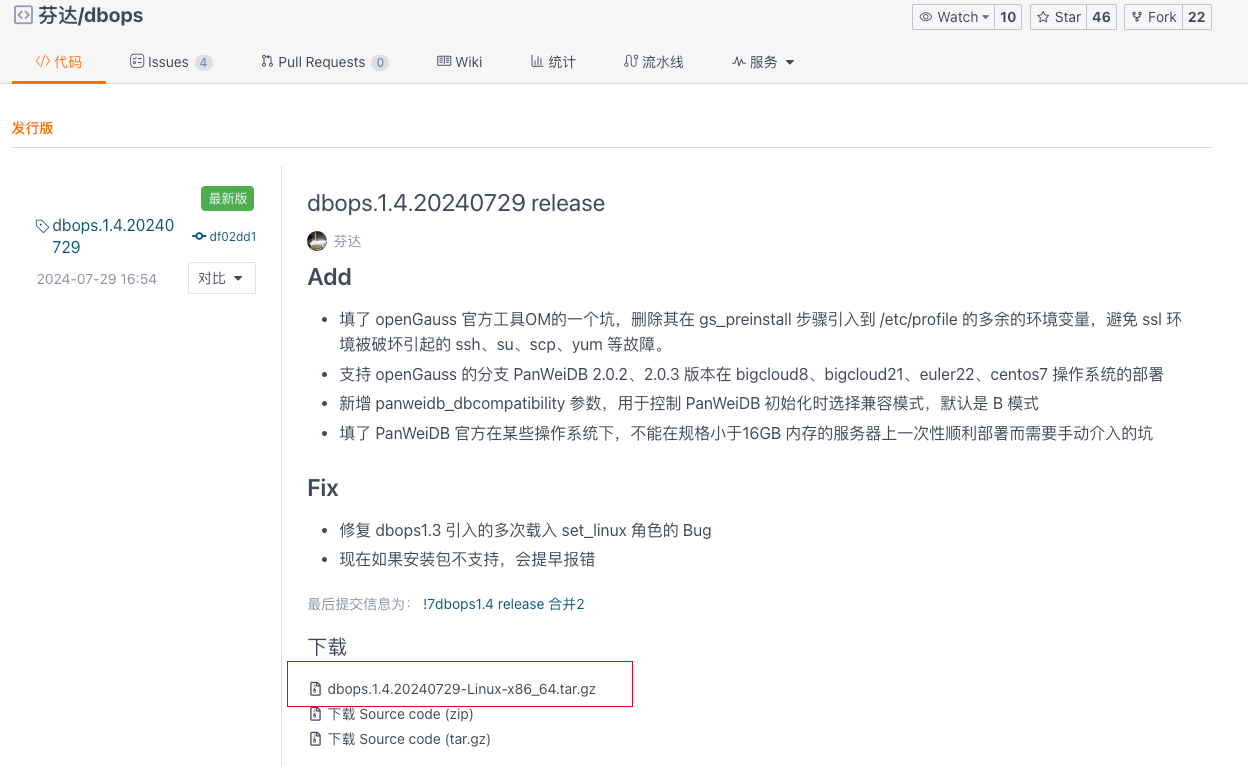

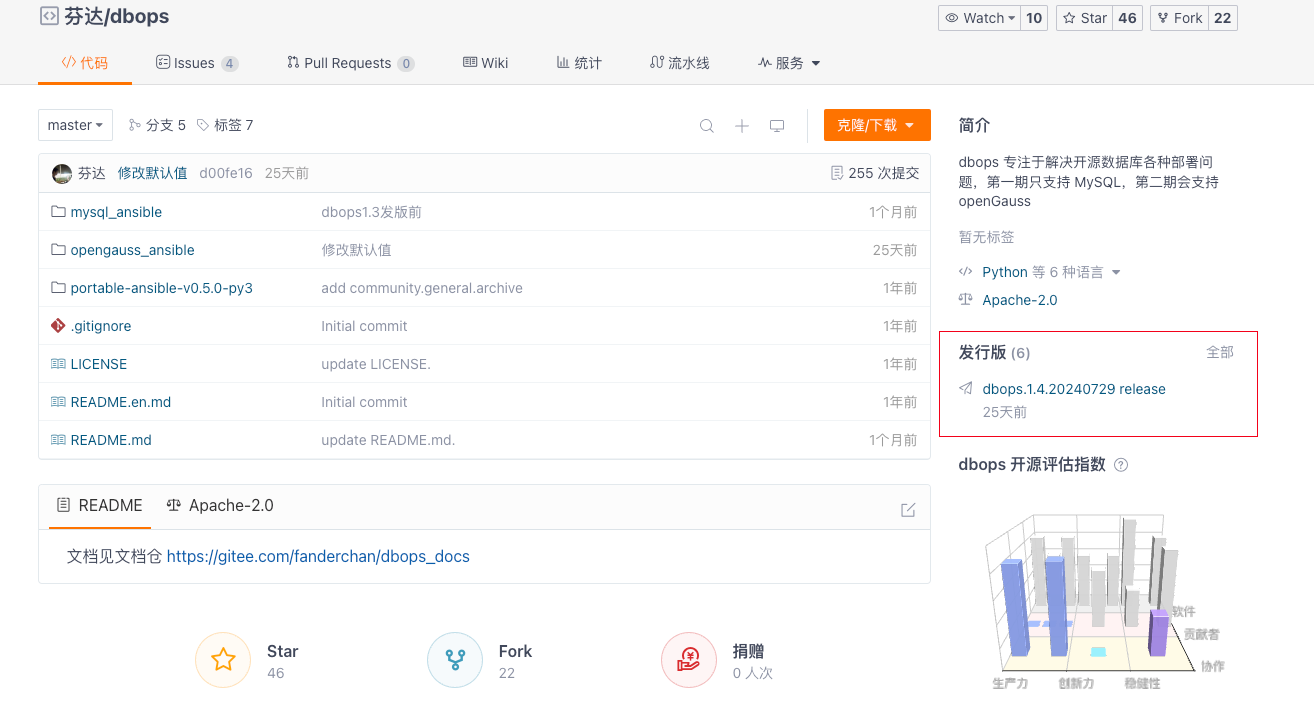

Gitee 下载

开发版下载

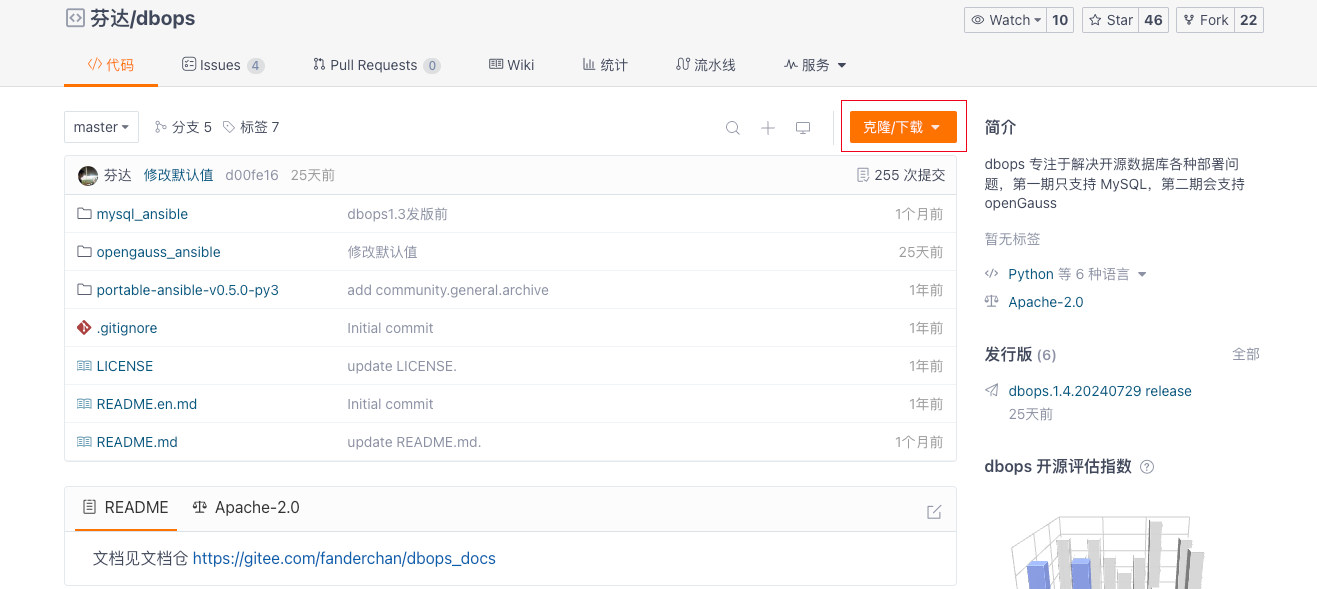

选择 克隆/下载即可：

我这里是通过服务器联网直接下载的方式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# 挂载本地 ISO
mount /dev/sr0 /mnt/

# 配置本地 YUM 源
## 备份系统初始配置文件
mkdir -p /etc/yum.repos.d/bak
mv /etc/yum.repos.d/* /etc/yum.repos.d/bak
## 一键配置软件源，默认 ISO 安装镜像挂载在 /mnt 目录下
cat<<-EOF>/etc/yum.repos.d/local.repo
[server]
name=server
baseurl=file:///mnt
enabled=1
gpgcheck=0
EOF
## 查看配置好的软件源
cat /etc/yum.repos.d/local.repo

# 最小化安装需要自行安装 wget 功能
yum install -y wget

# 通过 wget 方式下载稳定发行版
cd ~
dbops_version="1.4.20240729"
wget https://gitee.com/fanderchan/dbops/releases/download/dbops.${dbops_version}/dbops.${dbops_version}-Linux-x86_64.tar.gz

无法联网的朋友建议直接下载上传即可。

部署 dbops

为了降低 Ansible 部署难度和兼容性问题，统一版本以避免因使用不同版本产生 bug，所以作者特意采用了绿色版 Ansible 2.10.5，并集成到了 dbops 中。部署过程中，系统会自动安装 Python3，并搭配使用 Python3 和 Ansible 2.10.5。为加快 dbops 的下载速度，作者精简了绿色版 Ansible 中不常用的功能，使其体积非常小。ansible-portable 目录压缩后仅有 3.6 MB，整个 dbops.tar.gz 压缩包仅有 20 MB！

解压缩 dbops

作者推荐将安装路径设置为 /usr/local：

1
2
3
4
5
6
7
8
9
10
11
12
13
# 解压
[root@mysql8 ~]# tar zxvf dbops.1.4.20240729-Linux-x86_64.tar.gz -C /usr/local

# 查看解压后的目录
[root@mysql8 ~]# cd /usr/local/dbops/
[root@mysql8 dbops]# ll
total 20
-rw-r--r--. 1 root root 11356 Jul 29 16:41 LICENSE
drwxr-xr-x. 6 root root   148 Jul 29 16:41 mysql_ansible
drwxr-xr-x. 6 root root   120 Jul 29 16:41 opengauss_ansible
drwxr-xr-x. 3 root root    97 Jul 29 16:41 portable-ansible-v0.5.0-py3
-rw-r--r--. 1 root root   915 Jul 29 16:41 README.en.md
-rw-r--r--. 1 root root    58 Jul 29 16:41 README.md

部署 ansible

进入目录，执行 shell 脚本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
[root@mysql8 dbops]# cd /usr/local/dbops/portable-ansible-v0.5.0-py3
[root@mysql8 portable-ansible-v0.5.0-py3]# sh setup_portable_ansible.sh
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
Resolving Dependencies
--> Running transaction check
---> Package python3.x86_64 0:3.6.8-17.el7 will be installed
--> Processing Dependency: python3-libs(x86-64) = 3.6.8-17.el7 for package: python3-3.6.8-17.el7.x86_64
--> Processing Dependency: python3-setuptools for package: python3-3.6.8-17.el7.x86_64
--> Processing Dependency: python3-pip for package: python3-3.6.8-17.el7.x86_64
--> Processing Dependency: libpython3.6m.so.1.0()(64bit) for package: python3-3.6.8-17.el7.x86_64
--> Running transaction check
---> Package python3-libs.x86_64 0:3.6.8-17.el7 will be installed
--> Processing Dependency: libtirpc.so.1()(64bit) for package: python3-libs-3.6.8-17.el7.x86_64
---> Package python3-pip.noarch 0:9.0.3-8.el7 will be installed
---> Package python3-setuptools.noarch 0:39.2.0-10.el7 will be installed
--> Running transaction check
---> Package libtirpc.x86_64 0:0.2.4-0.16.el7 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

=====================================================================================================================================================================================================
 Package                                               Arch                                      Version                                             Repository                                 Size
=====================================================================================================================================================================================================
Installing:
 python3                                               x86_64                                    3.6.8-17.el7                                        server                                     70 k
Installing for dependencies:
 libtirpc                                              x86_64                                    0.2.4-0.16.el7                                      server                                     89 k
 python3-libs                                          x86_64                                    3.6.8-17.el7                                        server                                    6.9 M
 python3-pip                                           noarch                                    9.0.3-8.el7                                         server                                    1.6 M
 python3-setuptools                                    noarch                                    39.2.0-10.el7                                       server                                    629 k

Transaction Summary
=====================================================================================================================================================================================================
Install  1 Package (+4 Dependent packages)

Total download size: 9.3 M
Installed size: 48 M
Downloading packages:
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                                                                                114 MB/s | 9.3 MB  00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : libtirpc-0.2.4-0.16.el7.x86_64                                                                                                                                                    1/5
  Installing : python3-pip-9.0.3-8.el7.noarch                                                                                                                                                    2/5
  Installing : python3-setuptools-39.2.0-10.el7.noarch                                                                                                                                           3/5
  Installing : python3-3.6.8-17.el7.x86_64                                                                                                                                                       4/5
  Installing : python3-libs-3.6.8-17.el7.x86_64                                                                                                                                                  5/5
  Verifying  : libtirpc-0.2.4-0.16.el7.x86_64                                                                                                                                                    1/5
  Verifying  : python3-pip-9.0.3-8.el7.noarch                                                                                                                                                    2/5
  Verifying  : python3-3.6.8-17.el7.x86_64                                                                                                                                                       3/5
  Verifying  : python3-setuptools-39.2.0-10.el7.noarch                                                                                                                                           4/5
  Verifying  : python3-libs-3.6.8-17.el7.x86_64                                                                                                                                                  5/5

Installed:
  python3.x86_64 0:3.6.8-17.el7

Dependency Installed:
  libtirpc.x86_64 0:0.2.4-0.16.el7              python3-libs.x86_64 0:3.6.8-17.el7              python3-pip.noarch 0:9.0.3-8.el7              python3-setuptools.noarch 0:39.2.0-10.el7

Complete!
which: no sshpass in (/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin)
Please run 'source ~/.bashrc' to apply the changes in your current shell.

生效 .bashrc：

1
[root@mysql8 portable-ansible-v0.5.0-py3]# source ~/.bashrc

确认是否部署成功：

1
2
3
4
5
6
7
[root@mysql8 portable-ansible-v0.5.0-py3]# ansible --version
ansible 2.10.5
  config file = None
  configured module search path = ['/root/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
  ansible python module location = /usr/local/dbops/portable-ansible-v0.5.0-py3/ansible/ansible
  executable location = /usr/local/dbops/portable-ansible-v0.5.0-py3/ansible
  python version = 3.6.8 (default, Oct 13 2020, 16:18:22) [GCC 4.8.5 20150623 (Red Hat 4.8.5-44)]

python 版本是 3.x 为正确。ansible 版本为 2.10.5 为正确。

使用 dbops

dbops 支持的部署架构中有些至少需要 3 台机器，例如 MySQL 的 MGR 架构。建议 dbops 独立用一台机器，那么整套实验就至少需要 4 台机器。如果实在没办法，可以把 dbops 部署到第一台 MySQL 复用机器。

本次只演示单机模式部署，dbops 和 MySQL 共用一台服务器主机。

部署单机

修改 hosts.ini，添加需要操作的机器进去：

1
2
3
4
5
6
7
8
9
10
11
12
## 进入 hosts.ini 所在目录
[root@mysql8 inventory]# pwd
/usr/local/dbops/mysql_ansible/inventory

## 修改 hosts.ini 中对应的 IP 和 root 密码
[root@mysql8 inventory]# vi hosts.ini
[root@mysql8 inventory]# cat hosts.ini
[dbops_mysql]
192.168.168.162 ansible_user=root ansible_ssh_pass="'oracle'"

[all:vars]
#ansible_python_interpreter=/usr/bin/python3

建议在配置完 host.ini 之后验证一下服务器的连通性：

1
2
3
4
5
6
7
8
9
10
[root@mysql8 playbooks]# pwd
/usr/local/dbops/mysql_ansible/playbooks
[root@mysql8 playbooks]# ansible all -m ping
192.168.6.162 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python"
    },
    "changed": false,
    "ping": "pong"
}

修改公共配置参数文件 common_config.yml：

1
2
3
4
5
6
7
## 主要关注 MySQL 版本和端口号，如果不需要修改则跳过
[root@mysql8 playbooks]# pwd
/usr/local/dbops/mysql_ansible/playbooks
[root@mysql8 playbooks]# grep mysql_version: common_config.yml
mysql_version: "8.4.0"
[root@mysql8 playbooks]# grep mysql_port: common_config.yml
mysql_port: 3306

上传安装包：

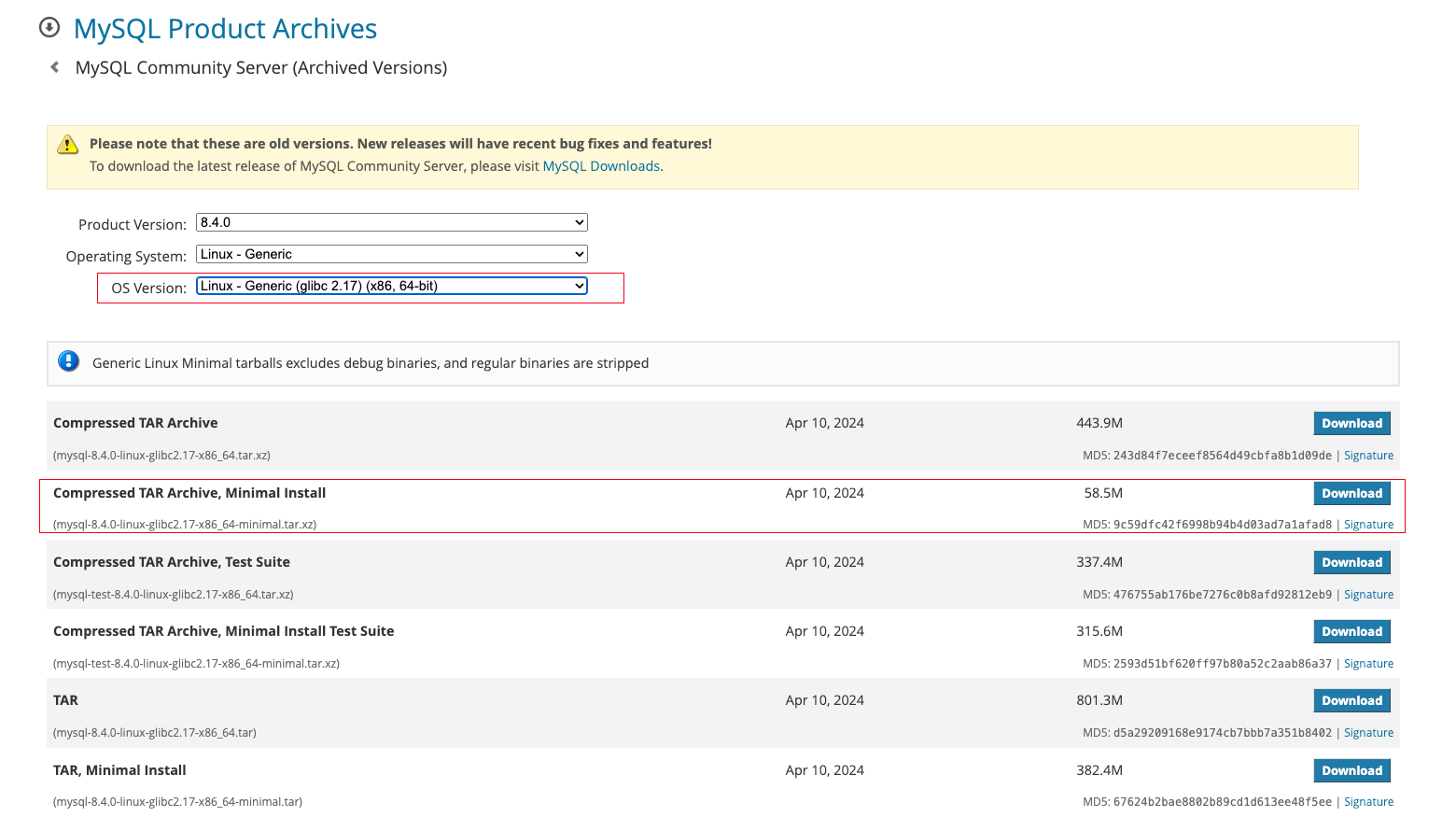

MySQL 安装包下载地址：MySQL Product Archives

选择安装包版本时，需要注意主机的 glibc 版本以及 CPU 架构：

1
2
3
4
5
6
7
8
9
10
## glibc 版本
[root@mysql8 ~]# ldd --version
ldd (GNU libc) 2.17
Copyright (C) 2012 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.  There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Written by Roland McGrath and Ulrich Drepper.
## CPU 架构
[root@mysql8 ~]# uname -m
x86_64

下载完成后上传至指定目录：

1
2
3
4
5
[root@mysql8 downloads]# pwd
/usr/local/dbops/mysql_ansible/downloads
[root@mysql8 downloads]# ll
total 59872
-rw-r--r--. 1 root root 61305888 Aug 23 16:03 mysql-8.4.0-linux-glibc2.17-x86_64-minimal.tar.xz

执行 playbook 部署，安装过程不需要联网：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
[root@mysql8 playbooks]# pwd
/usr/local/dbops/mysql_ansible/playbooks
[root@mysql8 playbooks]# ansible-playbook single_node.yml

PLAY [Deploy single-node MySQL server using binary installation] ************************************************************************************************************************************

TASK [Gathering Facts] ******************************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Check if password meets complexity requirements] **********************************************************************************************************************************************
ok: [192.168.6.162] => (item=None)
ok: [192.168.6.162] => (item=None)
ok: [192.168.6.162] => (item=None)
ok: [192.168.6.162] => (item=None)
ok: [192.168.6.162] => (item=None)
ok: [192.168.6.162] => (item=None)
ok: [192.168.6.162]

TASK [Print custom error message] *******************************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Validate fcs_ setting are 0 or 1] *************************************************************************************************************************************************************
skipping: [192.168.6.162] => (item=fcs_skip_db_mount_verification)
skipping: [192.168.6.162] => (item=fcs_skip_check_ntpd_or_chrony_running)
skipping: [192.168.6.162] => (item=fcs_auto_download_mysql)
skipping: [192.168.6.162] => (item=fcs_create_mysql_fast_login)
skipping: [192.168.6.162] => (item=fcs_backup_script_create_backup_user)
skipping: [192.168.6.162] => (item=fcs_mysql_use_jemalloc)
skipping: [192.168.6.162] => (item=fcs_use_greatsql_ha)

TASK [Validate mysql_port is within range] **********************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Validate mysql_version is within range] *******************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Validate mysql_version is within range] *******************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Validate db_type is a valid option] ***********************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Validate server_specs is a valid option] ******************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Check if mysql-8.4.0-linux-glibc2.17-x86_64-minimal.tar.xz exists in ../downloads/ (local)] ***************************************************************************************************
changed: [192.168.6.162]

TASK [Set the OS type variable] *********************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Print the OS type] ****************************************************************************************************************************************************************************
ok: [192.168.6.162] => {
    "msg": "The OS type of host 192.168.6.162 is CentOS7"
}

TASK [Assert if OS type is supported] ***************************************************************************************************************************************************************
ok: [192.168.6.162] => {
    "changed": false,
    "msg": "All assertions passed"
}

TASK [Check for Python 3] ***************************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Check for Python 2] ***************************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Set Python interpreter] ***********************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Print the Python interpreter] *****************************************************************************************************************************************************************
ok: [192.168.6.162] => {
    "msg": "The Python interpreter of host 192.168.6.162 is /usr/bin/python2"
}

TASK [Set server_specs_processor_count and server_specs_memtotal_gb based on server_specs] **********************************************************************************************************
skipping: [192.168.6.162]

TASK [Gen random MySQL server_id] *******************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Collect mysql_server_id to a list on localhost] ***********************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Check for duplicate mysql_server_id] **********************************************************************************************************************************************************
ok: [192.168.6.162] => {
    "changed": false,
    "msg": "All assertions passed"
}

TASK [Generate random UUID if mgr_use_random_uuid is set to 1] **************************************************************************************************************************************
changed: [192.168.6.162]

TASK [set_fact] *************************************************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [Display the list of target hosts and additional information] **********************************************************************************************************************************
ok: [192.168.6.162] => {
    "msg": [
        "Hosts to be affected by Deploy single-node MySQL server using binary installation: 192.168.6.162",
        "DB type: mysql",
        "MySQL port: 3306",
        "MySQL version: 8.4.0",
        "Server specs: auto",
        "Roles to be executed: ../roles/pre_check_and_set, ../roles/mysql_server"
    ]
}

TASK [Prompt user for confirmation] *****************************************************************************************************************************************************************
[Prompt user for confirmation]
This will perform Deploy single-node MySQL server using binary installation on the displayed hosts. Please type 'confirm' to continue or press Ctrl+C to cancel.:
ok: [192.168.6.162]

TASK [Check if user confirmed] **********************************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [Include role] *********************************************************************************************************************************************************************************

TASK [../roles/pre_check_and_set : Check yum and install libselinux-python3] ************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/pre_check_and_set : Install ncurses-compat-libs if necessary] ************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Intall tar for openEuler20] **************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/pre_check_and_set : Set SeLinux disabled] ********************************************************************************************************************************************
[WARNING]: SELinux state change will take effect next reboot
ok: [192.168.6.162]

TASK [../roles/pre_check_and_set : Stop and Disabled Firewalld] *************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/pre_check_and_set : Gather service facts] ********************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Assert NTP or Chrony is running and only one is enabled] *********************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Check whether NUMA is turned off] ********************************************************************************************************************************
fatal: [192.168.6.162]: FAILED! => {"changed": false, "cmd": ["grep", "-q", "numa=off", "/proc/cmdline"], "delta": "0:00:00.004868", "end": "2024-08-23 16:07:01.721770", "msg": "non-zero return code", "rc": 1, "start": "2024-08-23 16:07:01.716902", "stderr": "", "stderr_lines": [], "stdout": "", "stdout_lines": []}
...ignoring

TASK [../roles/pre_check_and_set : Show warning if NUMA is not turned off] **************************************************************************************************************************
ok: [192.168.6.162] => {
    "msg": "Warning: NUMA is not turned off."
}

TASK [../roles/pre_check_and_set : Update sysctl configuration file] ********************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/pre_check_and_set : Reload sysctl] ***************************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/pre_check_and_set : Extract parent directories of mysql_data_dir_base] ***************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Remove root '/' from parent directories list] ********************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Check if mount points exist for pre_check_and_set__mysql_data_dir_base_parents list] *****************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Find the first matching mount point for mysql_data_dir_base and its parents] *************************************************************************************
skipping: [192.168.6.162] => (item={'block_used': 35061, 'uuid': '3d53107e-ce12-4c21-a78d-82f97fef2750', 'size_total': 1063256064, 'block_total': 259584, 'mount': '/boot', 'block_available': 224523, 'size_available': 919646208, 'fstype': 'xfs', 'inode_total': 524288, 'options': 'rw,seclabel,relatime,attr2,inode64,noquota', 'device': '/dev/sda1', 'inode_used': 326, 'block_size': 4096, 'inode_available': 523962})
skipping: [192.168.6.162] => (item={'block_used': 4980714, 'uuid': '2020-11-02-15-15-23-00', 'size_total': 10200502272, 'block_total': 4980714, 'mount': '/mnt', 'block_available': 0, 'size_available': 0, 'fstype': 'iso9660', 'inode_total': 0, 'options': 'ro,relatime', 'device': '/dev/sr0', 'inode_used': 0, 'block_size': 2048, 'inode_available': 0})
skipping: [192.168.6.162] => (item={'block_used': 379986, 'uuid': '3342f530-81a3-43d8-8405-5f4ecb2d6389', 'size_total': 97658605568, 'block_total': 23842433, 'mount': '/', 'block_available': 23462447, 'size_available': 96102182912, 'fstype': 'xfs', 'inode_total': 47708160, 'options': 'rw,seclabel,relatime,attr2,inode64,noquota', 'device': '/dev/mapper/centos-root', 'inode_used': 34255, 'block_size': 4096, 'inode_available': 47673905})

TASK [../roles/pre_check_and_set : Debug output for mount point] ************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Assert mount point is using xfs filesystem] **********************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : If it is a physical machine, double network card binding is required] ********************************************************************************************
ok: [192.168.6.162] => {
    "msg": "ens192"
}

TASK [../roles/pre_check_and_set : If it is a physical machine, double network card binding is required] ********************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/pre_check_and_set : Add network interface alias to a temporary file] *****************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/pre_check_and_set : Fetch copy] ******************************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/pre_check_and_set : Append file /tmp/net_aliases.txt (delegate to 127.0.0.1)] ********************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/pre_check_and_set : Check if shell output is 1] **************************************************************************************************************************************
ok: [192.168.6.162] => {
    "changed": false,
    "msg": "All assertions passed"
}

TASK [../roles/pre_check_and_set : Delete /tmp/net_aliases.txt] *************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/pre_check_and_set : Delete /tmp/ssh/ (delegate to 127.0.0.1)] ************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Check if flag exists or not] ******************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Fail if flag exists] **************************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Check port not in use —— mysql port 3306] *****************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Ensure group "mysql" exists] ******************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Create mysql user] ****************************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Create mysql directories] *********************************************************************************************************************************************
ok: [192.168.6.162] => (item=/database/mysql/etc)
ok: [192.168.6.162] => (item=/database/mysql/data)
ok: [192.168.6.162] => (item=/database/mysql/tmp)
ok: [192.168.6.162] => (item=/database/mysql/run)
ok: [192.168.6.162] => (item=/database/mysql/log/binlog)
ok: [192.168.6.162] => (item=/database/mysql/log/redolog)
ok: [192.168.6.162] => (item=/database/mysql/log/relaylog)
ok: [192.168.6.162] => (item=/database/mysql/etc/3306)
ok: [192.168.6.162] => (item=/database/mysql/data/3306)
ok: [192.168.6.162] => (item=/database/mysql/tmp/3306)
ok: [192.168.6.162] => (item=/database/mysql/log/binlog/3306)
ok: [192.168.6.162] => (item=/database/mysql/log/redolog/3306)
ok: [192.168.6.162] => (item=/database/mysql/log/relaylog/3306)
ok: [192.168.6.162] => (item=/database/mysql/base/8.4.0)

TASK [../roles/mysql_server : Config /etc/my.cnf for mysql-5.7.x] ***********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Config /etc/my.cnf for mysql-8.0.x] ***********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Config /etc/my.cnf for mysql-8.4.x] ***********************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Config /etc/my.cnf for percona-5.7.x] *********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Config /etc/my.cnf for percona-8.0.x] *********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Config /etc/my.cnf for greatsql-5.7.x] ********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Config /etc/my.cnf for greatsql-8.0.x] ********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Install libaio and numactl] *******************************************************************************************************************************************
ok: [192.168.6.162] => (item={'name': 'libaio'})
ok: [192.168.6.162] => (item={'name': 'numactl'})

TASK [../roles/mysql_server : Install jemalloc using yum] *******************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Set jemalloc rpm file name based on OS] *******************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Copy jemalloc rpm to target server] ***********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Install jemalloc from local file] *************************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Check if jemalloc installation failed] ********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Check if MySQL package exists locally(local)] *************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Fail if MySQL package not found and auto download is disabled(local)] *************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Download MySQL binary tarball if not found locally and auto download is enabled(local)] *******************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Download GreatSQL binary tarball if not found locally and auto download is enabled(local)] ****************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Transfer MySQL install package to remote host] ************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Unarchive MySQL install package to /database/mysql/base/8.4.0] ********************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Touch unarchive_mysql_package_finished file] **************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Change owner to mysql user] *******************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Make link /database/mysql/mysql-xx.yy.gz to /usr/local/mysql] *********************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Export mysql share object (*.os)] *************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Load share object] ****************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Export path env variable] *********************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Export path env to /root/.bashrc] *************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Export path env to /home/mysql/.bashrc] *******************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Remove /usr/include/mysql] ********************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Export include file to /usr/include/mysql] ****************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Create symbolic links for libssl.so and libcrypto.so] *****************************************************************************************************************
skipping: [192.168.6.162] => (item={'src': 'libssl.so.10', 'dest': 'libssl.so'})
skipping: [192.168.6.162] => (item={'src': 'libcrypto.so.10', 'dest': 'libcrypto.so'})

TASK [../roles/mysql_server : Initialize-insecure for mysql-5.7.x] **********************************************************************************************************************************
skipping: [192.168.6.162]

TASK [../roles/mysql_server : Initialize-insecure for mysql-8.0.x or mysql-8.4.x] *******************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Create systemd config file] *******************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Start mysql(sytemctl)] ************************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Config mysql.service start up on boot] ********************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Mysql status] *********************************************************************************************************************************************************
ok: [192.168.6.162]

TASK [../roles/mysql_server : Transfer sql statement to remote] *************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Make mysql secure] ****************************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Remove temp file /tmp/make_mysql_secure.sql] **************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Ensure expect is installed] *******************************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Transfer expect script to remote host] ********************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Execute expect script to set MySQL login-path] ************************************************************************************************************************
[WARNING]: Module remote_tmp /home/mysql/.ansible/tmp did not exist and was created with a mode of 0700, this may cause issues when running as another user. To avoid this, create the remote_tmp
dir with the correct permissions manually
ok: [192.168.6.162]

TASK [../roles/mysql_server : Set up alias in .bashrc named —— db3306] ******************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Remove expect script from remote host] ********************************************************************************************************************************
changed: [192.168.6.162]

TASK [../roles/mysql_server : Touch single_finish.flag] *********************************************************************************************************************************************
changed: [192.168.6.162]

PLAY RECAP ******************************************************************************************************************************************************************************************
192.168.6.162              : ok=66   changed=31   unreachable=0    failed=0    skipped=36   rescued=0    ignored=1

Playbook run took 0 days, 0 hours, 1 minutes, 42 seconds

整个过程十分丝滑，大概需要 1~2 分钟就完成了，中间会有一步需要确认信息，输入 confirm 回车即可！

连接测试

使用 mysql 用户连接 MySQL，默认密码为 Dbops@8888：

1
2
3
4
5
6
7
8
9
[root@mysql8 playbooks]# su - mysql
Last login: Fri Aug 23 15:54:50 CST 2024 on pts/0
[mysql@mysql8 ~]$ mysql -uadmin -h127.0.0.1 -P3306 -pDbops@8888 -e "select @@version"
mysql: [Warning] Using a password on the command line interface can be insecure.
+-----------+
| @@version |
+-----------+
| 8.4.0     |
+-----------+

使用快速登录连接，这里其实是做了 alias 别名：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
## 查看 alias 别名
[mysql@mysql8 ~]$ alias | grep db3306
alias db3306='mysql --login-path=db3306'

## 连接 MySQL 数据库
[mysql@mysql8 ~]$ db3306
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 11
Server version: 8.4.0 MySQL Community Server - GPL

Copyright (c) 2000, 2024, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.01 sec)

对于任何 playbook，执行前都只需要做三件事即可

  • 正确地配置 inventory/hosts.ini 主机信息
  • 正确地配置 playbook/common_config.yml 的通用参数部分信息
  • 正确地配置 playbook/vars/var_xxx.yml 的专有参数部分信息

可以发现，如果熟悉了整个流程之后，部署将变得十分简单，特别是多台并行部署行，可以在几分钟内部署几十上百套数据库，总之 Niubility。

往期精彩文章推荐

Oracle RAC 启动顺序，你真的了解吗？
达梦数据库一键安装脚本（免费）一篇文章让你彻底掌握 Python 🔥
一篇文章让你彻底掌握 Shell 🔥
Oracle 监控 EMCC 13.5 安装部署超详细教程 🔥
Oracle 一键巡检自动生成 Word 报告 🔥
Oracle一键安装脚本的 21 个疑问与解答 🔥
Oracle一键巡检脚本的 21 个疑问与解答 🔥
全网首发：Oracle 23ai 一键安装脚本 🔥
Oracle 19C 最新 RU 补丁 19.24 ，一键安装！ 🔥
Oracle Linux 6 一键安装 Oracle 11GR2 RAC
Oracle Linux 7.9 一键安装 Oracle 19C
Oracle Linux 8.9 一键安装 Oracle 19C RAC
Oracle Linux 9.4(aarch64) 一键安装 Oracle 19C 🔥
openEuler 20.03 LTS SP4 一键安装 Oracle 19C 🔥
openEuler 22.03 LTS SP4 一键安装 Oracle 19C RAC
RHEL 7.9 一键安装 Oracle 19C 19.23 RAC
Redhat 8.4 一键安装 Oracle 11GR2
RedHat 9.4(aarch64) 一键安装 Oracle 19C
龙蜥 Anolis 7.9 一键安装 Oracle 19C 19.23
龙蜥 Anolis OS 8.8 一键安装 Oracle 19C
SUSE 15 SP5 一键安装 Oracle 19C
统信 UOS V20 1070(a) 一键安装 Oracle 11GR2
Ubuntu 22.04 一键安装 Oracle 19C
Ubuntu 14.04 一键安装 Oracle 19C
银河麒麟 Kylin V10 SP3 一键安装 Oracle 19C 🔥
银河麒麟 Kylin V10 SP3 一键安装 Oracle 11GR2 RAC
Oracle DataGuard GAP 修复手册 🔥
优化 Oracle：最佳实践与开发规范
DBA 必备：Linux 软件源配置全攻略 🔥
Linux 一键配置时钟同步全攻略 🔥
Starwind 配置 ISCSI 共享存储
SUSE 15 SP3 安装 Oracle 19C RAC 数据库
达梦 8 数据库安装手册 🔥
Oracle 12CR2 RAC 安装避坑宝典
Linux7 安装 Oracle 19C RAC 详细图文教程 🔥
Oracle ADG 搭建 RAC to Single 详细教程
Oracle DataGuard GAP 修复手册 🔥
Oracle 分区表之在线重定义
AutoUpgrade 快速升级 Oracle 数据库
Oracle 数据库巡检命令手册 🔥
Oracle 数据坏块的 N 种修复方式 🔥
数据库 SQL 开发入门教程
超全 Linux 基础命令总结 🔥
VMware 虚拟机安装 Linux 系统
Linux 安装 MySQL 详细教程
教你玩转 SQLPLUS，工作效率提升 200%

感谢您的阅读，这里是 Lucifer三思而后行，欢迎 点赞+关注，我会持续分享数据库知识、运维技巧。
