前言

Oracle 一键安装脚本，演示 openEuler 22.03 LTS SP3 一键安装 Oracle 11GR2 单机 ASM（231017）过程（全程无需人工干预）：（脚本包括 ORALCE PSU/OJVM 等补丁自动安装）

⭐️ 脚本下载地址：Shell脚本安装Oracle数据库

脚本第三代支持 N 节点一键安装，不限制节点数！

安装准备

  • 1、安装好操作系统，建议安装图形化
  • 2、配置好网络
  • 3、挂载本地 ISO 镜像源
  • 4、上传软件安装包（安装基础包，补丁包：33991024，35574075，35685663，35940989、6880880）
  • 5、上传一键安装脚本：OracleShellInstall

参考：

在 Oracle Linux 8 （openEuler 22.03 LTS SP3）安装 11GR2 单机 ASM 数据库，需要安装 19.14 版本之后的 Grid 软件补丁，然后再安装 11GR2 数据：

✨ 偷懒可以直接下载本文安装包合集：openEuler 22.03 LTS SP3（华为欧拉）一键安装 Oracle 11GR2 单机 ASM（231017）安装包合集（包含补丁！！！）

演示环境信息

++==📢注意：Oracle 11GR2 单机 ASM 安装主机名不能有大写字符，否则安装失败！==++

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
# 主机版本
[root@openeuler01 soft]# cat /etc/openeuler-release
openEuler release 22.03 (LTS-SP3)

# 网络信息
[root@openeuler01 soft]# ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:51:f8:ca brd ff:ff:ff:ff:ff:ff
    inet 192.168.6.130/24 brd 192.168.6.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::6bae:9840:87e5:b777/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

# 挂载本地 ISO 镜像
[root@openeuler01 soft]# mount | grep iso | grep -v "/run/media"
/dev/sr0 on /mnt type iso9660 (ro,relatime,nojoliet,check=s,map=n,blocksize=2048,iocharset=utf8)
[root@openeuler01 soft]# df -h|grep /mnt
/dev/sr0                     18G   18G     0 100% /mnt

# starwind 共享磁盘挂载（有存储就不需要使用 starwind，直接存储上划盘挂载就可）
yum install -y iscsi-initiator-utils*
systemctl start iscsid.service
systemctl enable iscsid.service
iscsiadm -m discovery -t st -p 192.168.6.188
## 挂载 ASM 磁盘
iscsiadm -m node -T iqn.2008-08.com.starwindsoftware:192.168.6.188-lucifer -p 192.168.6.188 -l
## 配置开机自动挂载
iscsiadm -m node -T iqn.2008-08.com.starwindsoftware:192.168.6.188-lucifer -p 192.168.6.188 --op update -n node.startup -v automatic

[root@openeuler01 ~]# lsblk
NAME               MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                  8:0    0  100G  0 disk
├─sda1               8:1    0    1G  0 part /boot
└─sda2               8:2    0   99G  0 part
  ├─openeuler-root 253:0    0   91G  0 lvm  /
  └─openeuler-swap 253:1    0    8G  0 lvm  [SWAP]
sdb                  8:16   0   10G  0 disk
sdc                  8:32   0   50G  0 disk
sr0                 11:0    1 17.1G  0 rom  /mnt

# 安装包存放在 /soft 目录下
[root@openeuler01 ~]# cd /soft/
[root@openeuler01 soft]# ll
-rwx------ 1 root root 2889184573  2月 26 13:37 LINUX.X64_193000_grid_home.zip
-rwxr-xr-x 1 root root     192199  2月 26 13:35 OracleShellInstall
-rwx------ 1 root root 1395582860  2月 26 13:36 p13390677_112040_Linux-x86-64_1of7.zip
-rwx------ 1 root root 1151304589  2月 26 13:36 p13390677_112040_Linux-x86-64_2of7.zip
-rwx------ 1 root root       8684  2月 26 13:36 p33991024_11204220118_Generic.zip
-rwx------ 1 root root  562188912  2月 26 13:36 p35574075_112040_Linux-x86-64.zip
-rwx------ 1 root root   86183099  2月 26 13:36 p35685663_112040_Linux-x86-64.zip
-rwx------ 1 root root 3153297056  2月 26 13:37 p35940989_190000_Linux-x86-64.zip
-rwx------ 1 root root  128433424  2月 26 13:36 p6880880_112000_Linux-x86-64.zip
-rwx------ 1 root root  127774864  2月 26 13:36 p6880880_190000_Linux-x86-64.zip
-rwxr-xr-x 1 root root     321590  2月 26 13:31 rlwrap-0.44.tar.gz

确保安装环境准备完成后，即可执行一键安装。

安装命令

使用标准生产环境安装参数（安装过程若失败，脚本支持重复执行安装）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
# 根据脚本 README 或者 -h 命令提示，编辑好一键安装命令，进入 /soft 目录执行安装：
./OracleShellInstall -n openeuler `# hostname prefix`\
-gp oracle `# grid password`\
-op oracle `# oracle password`\
-lf ens33 `# local ip ifname`\
-dd /dev/sdc `# rac data asm disk`\
-o lucifer `# dbname`\
-ds AL32UTF8 `# database character`\
-ns AL16UTF16 `# national character`\
-redo 100 `# redo size`\
-dp oracle `# sys/system password`\
-gpa 35940989 `# grid PSU/RU`\
-opa 35574075 `# db PSU/RU`\
-jpa 35685663 `# OJVM PSU/RU`\
-opd Y `# optimize db`\
-giv 19 `# grid version`

选择需要安装的模式以及版本，即可开始安装：

安装过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
   ███████                             ██          ████████ ██               ██  ██ ██                    ██              ██  ██
  ██░░░░░██                           ░██         ██░░░░░░ ░██              ░██ ░██░██                   ░██             ░██ ░██
 ██     ░░██ ██████  ██████    █████  ░██  █████ ░██       ░██       █████  ░██ ░██░██ ███████   ██████ ██████  ██████   ░██ ░██
░██      ░██░░██░░█ ░░░░░░██  ██░░░██ ░██ ██░░░██░█████████░██████  ██░░░██ ░██ ░██░██░░██░░░██ ██░░░░ ░░░██░  ░░░░░░██  ░██ ░██
░██      ░██ ░██ ░   ███████ ░██  ░░  ░██░███████░░░░░░░░██░██░░░██░███████ ░██ ░██░██ ░██  ░██░░█████   ░██    ███████  ░██ ░██
░░██     ██  ░██    ██░░░░██ ░██   ██ ░██░██░░░░        ░██░██  ░██░██░░░░  ░██ ░██░██ ░██  ░██ ░░░░░██  ░██   ██░░░░██  ░██ ░██
 ░░███████  ░███   ░░████████░░█████  ███░░██████ ████████ ░██  ░██░░██████ ███ ███░██ ███  ░██ ██████   ░░██ ░░████████ ███ ███
  ░░░░░░░   ░░░     ░░░░░░░░  ░░░░░  ░░░  ░░░░░░ ░░░░░░░░  ░░   ░░  ░░░░░░ ░░░ ░░░ ░░ ░░░   ░░ ░░░░░░     ░░   ░░░░░░░░ ░░░ ░░░

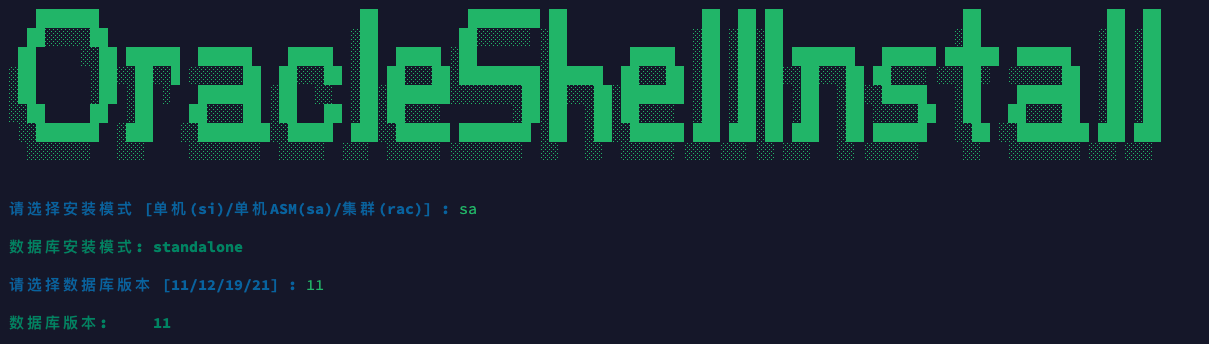

请选择安装模式 [单机(si)/单机ASM(sa)/集群(rac)] : sa

数据库安装模式: standalone

请选择数据库版本 [11/12/19/21] : 11

数据库版本:     11

OracleShellInstall 开始安装(安装过程可查看日志：/soft/print_ora_install_20240329150802.log）
正在检查操作系统是否符合安装条件......已完成 (耗时: 0 秒)
正在去除密码复杂度配置......已完成 (耗时: 0 秒)
正在配置 YUM 源......已完成 (耗时: 1 秒)
正在获取操作系统信息......已完成 (耗时: 1 秒)
正在配置 Swap......已完成 (耗时: 0 秒)
正在配置防火墙......已完成 (耗时: 3 秒)
正在配置 selinux......已完成 (耗时: 1 秒)
正在配置 nsyctl......已完成 (耗时: 1 秒)
正在安装依赖包......已完成 (耗时: 281 秒)
正在配置主机名和 /etc/hosts......已完成 (耗时: 1 秒)
正在创建用户和组......已完成 (耗时: 2 秒)
正在创建安装目录......已完成 (耗时: 1 秒)
正在配置 Avahi-daemon 服务......已完成 (耗时: 5 秒)
正在配置透明大页 && NUMA && 磁盘 IO 调度器......已完成 (耗时: 1 秒)
正在配置操作系统参数 sysctl......已完成 (耗时: 1 秒)
正在配置 RemoveIPC......已完成 (耗时: 2 秒)
正在配置用户限制 limit......已完成 (耗时: 1 秒)
正在配置 shm 目录......已完成 (耗时: 0 秒)
正在安装 rlwrap 插件......已完成 (耗时: 16 秒)
正在配置用户环境变量......已完成 (耗时: 1 秒)
正在解压 Grid 安装包以及补丁......已完成 (耗时: 185 秒)
正在解压 Oracle 安装包以及补丁......已完成 (耗时: 82 秒)
正在安装 Grid 软件以及补丁......已完成 (耗时: 1690 秒)
正在安装 Oracle 软件以及补丁......已完成 (耗时: 1419 秒)
正在创建数据库......已完成 (耗时: 955 秒)
正在优化数据库......已完成 (耗时: 27 秒)

恭喜！Oracle 单机 ASM 安装成功 (耗时: 4684 秒)，现在是否重启主机：[Y/N] Y

正在重启主机......

安装日志
