前言

Oracle 一键安装脚本，演示 openEuler 22.03 LTS SP3 一键安装 Oracle 19C RAC 过程（全程无需人工干预）：（脚本包括 ORALCE PSU/OJVM 等补丁自动安装）

⭐️ 脚本下载地址：Shell脚本安装Oracle数据库

脚本第三代支持 N 节点一键安装，不限制节点数！

安装准备

  • 1、安装好操作系统，建议安装图形化
  • 2、配置好网络
  • 3、挂载本地 ISO 镜像源
  • 4、上传软件安装包（安装基础包，补丁包：35926646、35943157、6880880）
  • 5、上传一键安装脚本：OracleShellInstall

✨ 偷懒可以直接下载本文安装包合集：openEuler 22.03 LTS SP3 安装 Oracle 19C RAC（19.22） 安装包合集（包含补丁！！！）

演示环境信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
# 主机版本
[root@openEuler01 soft]# cat /etc/openEuler-release
openEuler release 22.03 (LTS-SP3)

# 网络信息
## 节点一
[root@openEuler01 soft]# ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:51:f8:ca brd ff:ff:ff:ff:ff:ff
    inet 192.168.6.130/24 brd 192.168.6.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::6bae:9840:87e5:b777/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:51:f8:de brd ff:ff:ff:ff:ff:ff
    inet 1.1.1.1/24 brd 1.1.1.255 scope global noprefixroute ens37
       valid_lft forever preferred_lft forever
    inet6 fe80::7590:c66c:2046:880c/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

## 节点二
[root@openEuler02 ~]# ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:6e:b2:2c brd ff:ff:ff:ff:ff:ff
    inet 192.168.6.131/24 brd 192.168.6.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe6e:b22c/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: ens37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:6e:b2:40 brd ff:ff:ff:ff:ff:ff
    inet 1.1.1.2/24 brd 1.1.1.255 scope global noprefixroute ens37
       valid_lft forever preferred_lft forever
    inet6 fe80::683c:1c48:9251:7df7/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

# 挂载本地 ISO 镜像
## 节点一
[root@openEuler01 soft]# mount | grep iso | grep -v "/run/media"
/dev/sr0 on /mnt type iso9660 (ro,relatime,nojoliet,check=s,map=n,blocksize=2048,iocharset=utf8)
[root@openEuler01 soft]# df -h|grep /mnt
/dev/sr0                     18G   18G     0 100% /mnt

## 节点二
[root@openEuler02 soft]# mount | grep iso | grep -v "/run/media"
/dev/sr0 on /mnt type iso9660 (ro,relatime,nojoliet,check=s,map=n,blocksize=2048,iocharset=utf8)
[root@openEuler02 soft]# df -h|grep /mnt
/dev/sr0                     18G   18G     0 100% /mnt

# starwind 共享磁盘挂载（有存储就不需要使用 starwind，直接存储上划盘挂载就可）
yum install -y iscsi-initiator-utils*
systemctl start iscsid.service
systemctl enable iscsid.service
iscsiadm -m discovery -t st -p 192.168.6.188
## 挂载 ASM 磁盘
iscsiadm -m node -T iqn.2008-08.com.starwindsoftware:192.168.6.188-lucifer -p 192.168.6.188 -l
## 配置开机自动挂载
iscsiadm -m node –T iqn.2008-08.com.starwindsoftware:192.168.6.188-lucifer -p 192.168.6.188 --op update -n node.startup -v automatic

## 节点一
[root@openEuler01 ~]# lsblk
NAME               MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                  8:0    0  100G  0 disk
├─sda1               8:1    0    1G  0 part /boot
└─sda2               8:2    0   99G  0 part
  ├─openeuler-root 253:0    0   91G  0 lvm  /
  └─openeuler-swap 253:1    0    8G  0 lvm  [SWAP]
sdb                  8:16   0   10G  0 disk
sdc                  8:32   0   50G  0 disk
sr0                 11:0    1 17.1G  0 rom  /mnt

## 节点二
[root@openEuler02 ~]# lsblk
NAME               MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                  8:0    0  100G  0 disk
├─sda1               8:1    0    1G  0 part /boot
└─sda2               8:2    0   99G  0 part
  ├─openeuler-root 253:0    0   91G  0 lvm  /
  └─openeuler-swap 253:1    0    8G  0 lvm  [SWAP]
sdb                  8:16   0   10G  0 disk
sdc                  8:32   0   50G  0 disk
sr0                 11:0    1 17.1G  0 rom  /mnt

# 安装包存放在 /soft 目录下
[root@openEuler01 ~]# cd /soft/
[root@openEuler01 soft]# ll
-rwx------. 1 root root 3059705302 Mar 20 13:57 LINUX.X64_193000_db_home.zip
-rwx------. 1 root root 2889184573 Mar 20 13:58 LINUX.X64_193000_grid_home.zip
-rwxr-xr-x. 1 root root     163796 Mar 20 15:17 OracleShellInstall
-rwx------. 1 root root  127451050 Mar 20 13:58 p35926646_190000_Linux-x86-64.zip
-rwx------. 1 root root 3153297056 Mar 20 13:58 p35940989_190000_Linux-x86-64.zip
-rwx------. 1 root root  127774864 Mar 20 13:58 p6880880_190000_Linux-x86-64.zip
-rwx------. 1 root root     321590 Mar 20 13:58 rlwrap-0.44.tar.gz

# 修改 root 密码，脚本不支持特殊字符，例如 @ 符号
# 去除密码复杂度
sed -i 's/^password\+[[:space:]]\+requisite[[:space:]]\+pam_pwquality.so/#&/g' /etc/pam.d/system-auth
sed -i 's/use_authtok$//' /etc/pam.d/system-auth
# 修改 root 密码
[root@openEuler01 soft]# passwd root
Changing password for user root.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.

[root@openEuler02 ~]# passwd root
Changing password for user root.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.

以上配置完成后，建议重启两台主机，重启后记得再次挂载 ISO：

1
2
3
4
5
[root@openEuler01:/soft]$ mount /dev/cdrom /mnt/
mount: /mnt: WARNING: source write-protected, mounted read-only.

[root@openEuler02:/root]$ mount /dev/cdrom /mnt/
mount: /mnt: WARNING: source write-protected, mounted read-only.

确保安装环境准备完成后，即可执行一键安装。

📢注意： 如果安装过程中 GRID 安装报错（一般是因为 ASM 磁盘没有配置好，可能是 openEuler 不适配的原因）：

1
2
3
4
5
6
7
8
9
[FATAL] [INS-30508] Invalid ASM disks.
   CAUSE: The disks [/dev/asm_ocr_1] were not valid.
   ACTION: Please choose or enter valid ASM disks.
[FATAL] [INS-30515] Insufficient space available in the selected disks.
   CAUSE: Insufficient space available in the selected Disks. At least, 1.2 GB of free space is required.
   ACTION: Choose additional disks such that the total size should be at least 1.2 GB.
Moved the install session logs to:
 /u01/app/oraInventory/logs/GridSetupActions2024-03-20_03-40-18PM
抱歉，Grid 软件安装失败，请检查!

则需要重启两台主机，确认 ASM 磁盘已经如下挂载成功后再次执行安装命令：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@openEuler01:/root]$ lsblk
NAME               MAJ:MIN RM  SIZE RO TYPE  MOUNTPOINTS
sda                  8:0    0  100G  0 disk
├─sda1               8:1    0    1G  0 part  /boot
└─sda2               8:2    0   99G  0 part
  ├─openeuler-root 253:0    0   91G  0 lvm   /
  └─openeuler-swap 253:1    0    8G  0 lvm   [SWAP]
sdb                  8:16   0   10G  0 disk
└─asm_ocr_1        253:3    0   10G  0 mpath
sdc                  8:32   0   50G  0 disk
└─asm_data_1       253:2    0   50G  0 mpath
sr0                 11:0    1 17.1G  0 rom

[root@openEuler02:/root]$ lsblk
NAME               MAJ:MIN RM  SIZE RO TYPE  MOUNTPOINTS
sda                  8:0    0  100G  0 disk
├─sda1               8:1    0    1G  0 part  /boot
└─sda2               8:2    0   99G  0 part
  ├─openeuler-root 253:0    0   91G  0 lvm   /
  └─openeuler-swap 253:1    0    8G  0 lvm   [SWAP]
sdb                  8:16   0   10G  0 disk
└─asm_ocr_1        253:3    0   10G  0 mpath
sdc                  8:32   0   50G  0 disk
└─asm_data_1       253:2    0   50G  0 mpath
sr0                 11:0    1 17.1G  0 rom

安装命令

使用标准生产环境安装参数（安装过程若失败，脚本支持重复执行安装）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# 根据脚本 README 或者 -h 命令提示，编辑好一键安装命令，进入 /soft 目录执行安装：
./OracleShellInstall -n openEuler `# hostname prefix`\
-hn openEuler01,openEuler02 `# rac node hostname`\
-cn openEuler-cls `# cluster_name`\
-rp welcome1 `# root password`\
-gp welcome1 `# grid password`\
-op welcome1 `# oracle password`\
-lf ens33 `# local ip ifname`\
-pf ens37 `# rac private ip ifname`\
-ri 192.168.6.130,192.168.6.131 `# rac node public ip`\
-vi 192.168.6.132,192.168.6.133 `# rac virtual ip`\
-si 192.168.6.134 `# rac scan ip`\
-od /dev/sdb `# rac ocr asm disk`\
-dd /dev/sdc `# rac data asm disk`\
-o lucifer `# dbname`\
-ds AL32UTF8 `# database character`\
-ns AL16UTF16 `# national character`\
-redo 100 `# redo size`\
-dp oracle `# sys/system password`\
-gpa 35940989 `# grid PSU/RU`\
-jpa 35926646 `# OJVM PSU/RU`\
-opd Y `# optimize db`

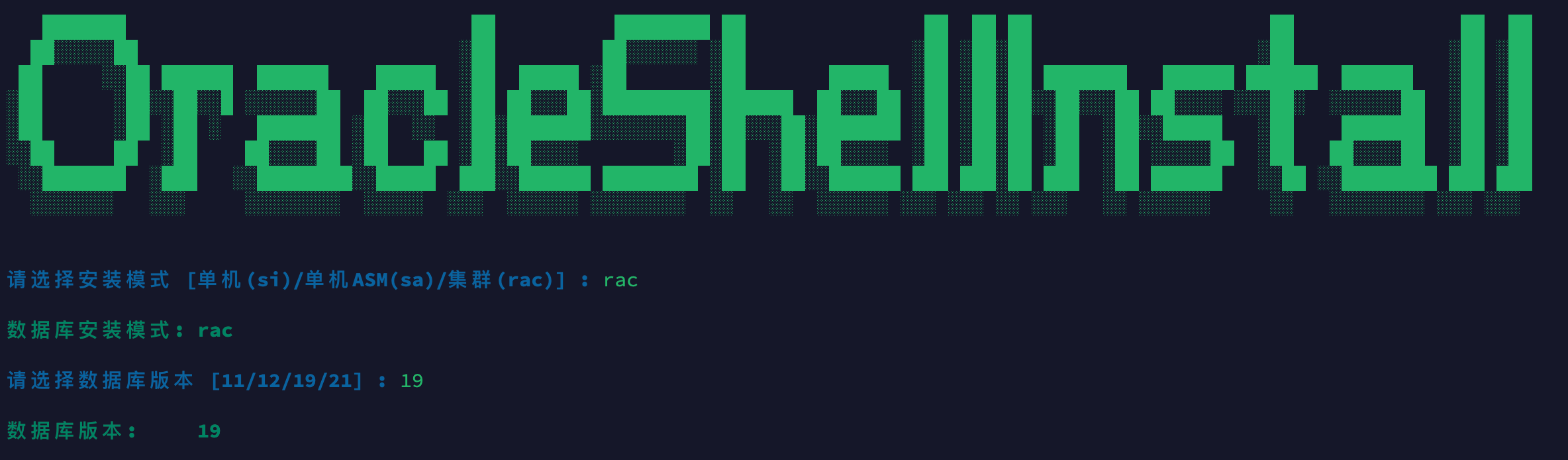

选择需要安装的模式以及版本，即可开始安装：

安装过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
1196
1197
1198
1199
1200
1201
1202
1203
1204
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
1216
1217
1218
1219
1220
1221
1222
1223
1224
1225
1226
1227
1228
1229
1230
1231
1232
1233
1234
1235
1236
1237
1238
1239
1240
1241
1242
1243
1244
1245
1246
1247
1248
1249
1250
1251
1252
1253
1254
1255
1256
1257
1258
1259
1260
1261
1262
1263
1264
1265
1266
1267
1268
1269
1270
1271
1272
1273
1274
1275
1276
1277
1278
1279
1280
1281
1282
1283
1284
1285
1286
1287
1288
1289
1290
1291
1292
1293
1294
1295
1296
1297
1298
1299
1300
1301
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1315
1316
1317
1318
1319
1320
1321
1322
1323
1324
1325
1326
1327
1328
1329
1330
1331
1332
1333
1334
1335
1336
1337
1338
1339
1340
1341
1342
1343
1344
1345
1346
1347
1348
1349

   ███████                             ██          ████████ ██               ██  ██ ██                    ██              ██  ██
  ██░░░░░██                           ░██         ██░░░░░░ ░██              ░██ ░██░██                   ░██             ░██ ░██
 ██     ░░██ ██████  ██████    █████  ░██  █████ ░██       ░██       █████  ░██ ░██░██ ███████   ██████ ██████  ██████   ░██ ░██
░██      ░██░░██░░█ ░░░░░░██  ██░░░██ ░██ ██░░░██░█████████░██████  ██░░░██ ░██ ░██░██░░██░░░██ ██░░░░ ░░░██░  ░░░░░░██  ░██ ░██
░██      ░██ ░██ ░   ███████ ░██  ░░  ░██░███████░░░░░░░░██░██░░░██░███████ ░██ ░██░██ ░██  ░██░░█████   ░██    ███████  ░██ ░██
░░██     ██  ░██    ██░░░░██ ░██   ██ ░██░██░░░░        ░██░██  ░██░██░░░░  ░██ ░██░██ ░██  ░██ ░░░░░██  ░██   ██░░░░██  ░██ ░██
 ░░███████  ░███   ░░████████░░█████  ███░░██████ ████████ ░██  ░██░░██████ ███ ███░██ ███  ░██ ██████   ░░██ ░░████████ ███ ███
  ░░░░░░░   ░░░     ░░░░░░░░  ░░░░░  ░░░  ░░░░░░ ░░░░░░░░  ░░   ░░  ░░░░░░ ░░░ ░░░ ░░ ░░░   ░░ ░░░░░░     ░░   ░░░░░░░░ ░░░ ░░░


请选择安装模式 [单机(si)/单机ASM(sa)/集群(rac)] : rac

数据库安装模式: rac

请选择数据库版本 [11/12/19/21] : 19

数据库版本:     19

#==============================================================#
配置本地 YUM 源
#==============================================================#

[openEuler]
name=openEuler
baseurl=file:////mnt
enabled=1
gpgcheck=1
gpgkey=file:////mnt/RPM-GPG-KEY-openEuler

#==============================================================#
获取 ASM 磁盘 UUID && 格式化磁盘头
#==============================================================#

格式化 OCR 磁盘：/dev/sdb

1+0 records in
1+0 records out
1024 bytes (1.0 kB, 1.0 KiB) copied, 0.000149528 s, 6.8 MB/s

OCR磁盘组的磁盘UUID： 2e87e4f535c397171

格式化 DATA 磁盘：/dev/sdc

1+0 records in
1+0 records out
1024 bytes (1.0 kB, 1.0 KiB) copied, 0.000148043 s, 6.9 MB/s

DATA磁盘组的磁盘UUID： 2f218dae15b551c5d

#==============================================================#
禁用防火墙
#==============================================================#

防火墙服务未启动，无需禁用。

#==============================================================#
禁用 SELinux
#==============================================================#

SELinux status:                 disabled

#==============================================================#
YUM 静默安装依赖包
#==============================================================#

bc-1.07.1-12.oe2203sp3.x86_64
binutils-2.37-24.oe2203sp3.x86_64
package compat-libcap1 is not installed
gcc-10.3.1-49.oe2203sp3.x86_64
gcc-c++-10.3.1-49.oe2203sp3.x86_64
package elfutils-libelf is not installed
package elfutils-libelf-devel is not installed
glibc-2.34-143.oe2203sp3.x86_64
glibc-devel-2.34-143.oe2203sp3.x86_64
libaio-0.3.113-9.oe2203sp3.x86_64
libaio-devel-0.3.113-9.oe2203sp3.x86_64
libgcc-10.3.1-49.oe2203sp3.x86_64
libstdc++-10.3.1-49.oe2203sp3.x86_64
libstdc++-devel-10.3.1-49.oe2203sp3.x86_64
libxcb-1.15-1.oe2203sp3.x86_64
libX11-1.7.2-8.oe2203sp3.x86_64
libXau-1.0.10-1.oe2203sp3.x86_64
libXi-1.8-2.oe2203sp3.x86_64
libXrender-0.9.10-12.oe2203sp3.x86_64
make-4.3-4.oe2203sp3.x86_64
net-tools-2.10-3.oe2203sp3.x86_64
smartmontools-7.2-2.oe2203sp3.x86_64
sysstat-12.5.4-9.oe2203sp3.x86_64
e2fsprogs-1.46.4-24.oe2203sp3.x86_64
package e2fsprogs-libs is not installed
unzip-6.0-50.oe2203sp3.x86_64
openssh-clients-8.8p1-23.oe2203sp3.x86_64
readline-8.1-3.oe2203sp3.x86_64
readline-devel-8.1-3.oe2203sp3.x86_64
psmisc-23.5-2.oe2203sp3.x86_64
ksh-2020.0.0-10.oe2203sp3.x86_64
nfs-utils-2.5.4-15.oe2203sp3.x86_64
tar-1.34-5.oe2203sp3.x86_64
package device-mapper-multipath is not installed
avahi-0.8-18.oe2203sp3.x86_64
ntp-4.2.8p15-13.oe2203sp3.x86_64
chrony-4.1-6.oe2203sp3.x86_64
libXtst-1.2.4-1.oe2203sp3.x86_64
libXrender-devel-0.9.10-12.oe2203sp3.x86_64
fontconfig-devel-2.13.94-3.oe2203sp3.x86_64
policycoreutils-3.3-8.oe2203sp3.x86_64
package policycoreutils-python is not installed
package librdmacm is not installed
package libnsl* is not installed
package libibverbs is not installed
package compat-openssl10 is not installed
policycoreutils-python-utils-3.3-8.oe2203sp3.noarch
package elfutils* is not installed
glibc-2.34-143.oe2203sp3.x86_64

#==============================================================#
配置主机名
#==============================================================#

openEuler01

#==============================================================#
配置 /etc/hosts 文件
#==============================================================#

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6


## OracleBegin

## RAC1 IP's: openEuler01

## RAC1 Public IP
192.168.6.130 openEuler01
## RAC1 Virtual IP
192.168.6.132 openEuler01-vip
## RAC1 Private IP
1.1.1.1 openEuler01-priv

## RAC2 IP's: openEuler02

## RAC2 Public IP
192.168.6.131 openEuler02
## RAC2 Virtual IP
192.168.6.133 openEuler02-vip
## RAC2 Private IP
1.1.1.2 openEuler02-priv

## SCAN IP
192.168.6.134 openEuler-scan

#==============================================================#
创建用户和组
#==============================================================#

oracle 用户：

uid=54321(oracle) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba),54327(asmdba),54328(asmoper),54329(asmadmin)

grid 用户：

uid=11012(grid) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba),54327(asmdba),54328(asmoper),54329(asmadmin)


#==============================================================#
配置 Avahi-daemon 服务
#==============================================================#

○ avahi-daemon.service - Avahi mDNS/DNS-SD Stack
     Loaded: loaded (/usr/lib/systemd/system/avahi-daemon.service; disabled; vendor preset: enabled)
     Active: inactive (dead)
TriggeredBy: ○ avahi-daemon.socket

#==============================================================#
配置透明大页 && NUMA && 磁盘 IO 调度器
#==============================================================#

args="ro resume=/dev/mapper/openeuler-swap rd.lvm.lv=openeuler/root rd.lvm.lv=openeuler/swap cgroup_disable=files apparmor=0 crashkernel=512M rhgb quiet numa=off transparent_hugepage=never elevator=deadline"
-resume=/dev/mapper/openeuler-swap
-args="ro
args="ro resume=/dev/mapper/openeuler-swap rd.lvm.lv=openeuler/root rd.lvm.lv=openeuler/swap cgroup_disable=files apparmor=0 crashkernel=512M rhgb quiet numa=off transparent_hugepage=never elevator=deadline"
-rhgb
-crashkernel=512M

#==============================================================#
配置 sysctl.conf
#==============================================================#

kernel.sysrq = 0
net.ipv4.ip_forward = 0
net.ipv4.conf.all.send_redirects = 0
net.ipv4.conf.default.send_redirects = 0
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.default.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.default.accept_redirects = 0
net.ipv4.conf.all.secure_redirects = 0
net.ipv4.conf.default.secure_redirects = 0
net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.icmp_ignore_bogus_error_responses = 1
net.ipv4.conf.all.rp_filter = 1
net.ipv4.conf.default.rp_filter = 1
net.ipv4.tcp_syncookies = 1
kernel.dmesg_restrict = 1
net.ipv6.conf.all.accept_redirects = 0
net.ipv6.conf.default.accept_redirects = 0
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 7795077119
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576
vm.min_free_kbytes = 30449
net.ipv4.conf.ens33.rp_filter = 1
vm.swappiness = 10
kernel.panic_on_oops = 1
kernel.randomize_va_space = 2
kernel.numa_balancing = 0
net.ipv4.conf.ens37.rp_filter = 2

#==============================================================#
配置 RemoveIPC
#==============================================================#

[Login]
RemoveIPC=no

#==============================================================#
配置 /etc/security/limits.conf 和 /etc/pam.d/login
#==============================================================#

查看 /etc/security/limits.conf：

oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 32768
oracle soft nproc 2047
oracle hard nproc 16384
oracle hard memlock unlimited
oracle soft memlock unlimited
grid soft nofile 1024
grid hard nofile 65536
grid soft stack 10240
grid hard stack 32768
grid soft nproc 2047
grid hard nproc 16384

查看 /etc/pam.d/login 文件：

auth       substack     system-auth
auth       include      postlogin
account    required     pam_nologin.so
account    include      system-auth
password   include      system-auth
session    required     pam_selinux.so close
session    required     pam_loginuid.so
session    required     pam_selinux.so open
session    required     pam_namespace.so
session    optional     pam_keyinit.so force revoke
session    include      system-auth
session    include      postlogin
-session   optional     pam_ck_connector.so
session required pam_limits.so
session required /lib64/security/pam_limits.so

#==============================================================#
配置 /dev/shm
#==============================================================#

/dev/mapper/openeuler-root /                       ext4    defaults        1 1
UUID=07e6a80f-f2f4-42f8-a1ad-df05bd354960 /boot                   ext4    defaults        1 2
/dev/mapper/openeuler-swap none                    swap    defaults        0 0
tmpfs /dev/shm tmpfs size=7612384k 0 0

#==============================================================#
Root 用户环境变量
#==============================================================#

if [ -f ~/.bashrc ]; then
        . ~/.bashrc
fi
PATH=$PATH:$HOME/bin
export PATH
alias so='su - oracle'
export PS1="[`whoami`@`hostname`:"'$PWD]$ '
alias sg='su - grid'
alias crsctl='/u01/app/19.3.0/grid/bin/crsctl'
alias srvctl='/u01/app/19.3.0/grid/bin/srvctl'

#==============================================================#
Oracle 用户环境变量
#==============================================================#

[ -f ~/.bashrc ] && . ~/.bashrc
umask 022
export TMP=/tmp
export TMPDIR=$TMP
export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=/u01/app/oracle/product/19.3.0/db
export ORACLE_TERM=xterm
export TNS_ADMIN=$ORACLE_HOME/network/admin
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export ORACLE_SID=lucifer1
export PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$ORACLE_HOME/perl/bin:$PATH
export PERL5LIB=$ORACLE_HOME/perl/lib
alias sas='sqlplus / as sysdba'
alias awr='sqlplus / as sysdba @?/rdbms/admin/awrrpt'
alias ash='sqlplus / as sysdba @?/rdbms/admin/ashrpt'
alias alert='vi $ORACLE_BASE/diag/rdbms/*/$ORACLE_SID/trace/alert_$ORACLE_SID.log'
export PS1="[`whoami`@`hostname`:"'$PWD]$ '
export CV_ASSUME_DISTID=OL7
alias sqlplus='rlwrap sqlplus'
alias rman='rlwrap rman'
alias adrci='rlwrap adrci'

#==============================================================#
Grid 用户环境变量
#==============================================================#

[ -f ~/.bashrc ] && . ~/.bashrc
umask 022
export TMP=/tmp
export TMPDIR=$TMP
export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
export ORACLE_BASE=/u01/app/grid
export ORACLE_HOME=/u01/app/19.3.0/grid
export ORACLE_TERM=xterm
export TNS_ADMIN=$ORACLE_HOME/network/admin
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export ORACLE_SID=+ASM1
export PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH
alias sas='sqlplus / as sysasm'
export PS1="[`whoami`@`hostname`:"'$PWD]$ '
export CV_ASSUME_DISTID=OL7
alias sqlplus='rlwrap sqlplus'
alias asmcmd='rlwrap asmcmd'
alias adrci='rlwrap adrci'

#==============================================================#
配置 multipath 多路径
#==============================================================#

415.530920 | asm_ocr_1: addmap [0 20971520 multipath 0 0 1 1 service-time 0 1 1 8:16 1]
415.732452 | asm_data_1: addmap [0 104857600 multipath 0 0 1 1 service-time 0 1 1 8:32 1]
create: asm_ocr_1 (2e87e4f535c397171) undef ROCKET,IMAGEFILE
size=10G features='0' hwhandler='0' wp=undef
`-+- policy='service-time 0' prio=1 status=undef
  `- 3:0:0:0 sdb 8:16 undef ready running
create: asm_data_1 (2f218dae15b551c5d) undef ROCKET,IMAGEFILE
size=50G features='0' hwhandler='0' wp=undef
`-+- policy='service-time 0' prio=1 status=undef
  `- 3:0:0:1 sdc 8:32 undef ready running

#==============================================================#
配置 UDEV 绑盘
#==============================================================#

KERNEL=="dm-*",ENV{DM_UUID}=="mpath-2e87e4f535c397171",SYMLINK+="asm_ocr_1",OWNER="grid",GROUP="asmadmin",MODE="0660"
KERNEL=="dm-*",ENV{DM_UUID}=="mpath-2f218dae15b551c5d",SYMLINK+="asm_data_1",OWNER="grid",GROUP="asmadmin",MODE="0660"

/dev/asm_data_1
/dev/asm_ocr_1

UDEV 配置完成!

#==============================================================#
配置 RAC 节点：192.168.6.131
#==============================================================#

正在节点：192.168.6.131 上执行脚本：

   ███████                             ██          ████████ ██               ██  ██ ██                    ██              ██  ██
  ██░░░░░██                           ░██         ██░░░░░░ ░██              ░██ ░██░██                   ░██             ░██ ░██
 ██     ░░██ ██████  ██████    █████  ░██  █████ ░██       ░██       █████  ░██ ░██░██ ███████   ██████ ██████  ██████   ░██ ░██
░██      ░██░░██░░█ ░░░░░░██  ██░░░██ ░██ ██░░░██░█████████░██████  ██░░░██ ░██ ░██░██░░██░░░██ ██░░░░ ░░░██░  ░░░░░░██  ░██ ░██
░██      ░██ ░██ ░   ███████ ░██  ░░  ░██░███████░░░░░░░░██░██░░░██░███████ ░██ ░██░██ ░██  ░██░░█████   ░██    ███████  ░██ ░██
░░██     ██  ░██    ██░░░░██ ░██   ██ ░██░██░░░░        ░██░██  ░██░██░░░░  ░██ ░██░██ ░██  ░██ ░░░░░██  ░██   ██░░░░██  ░██ ░██
 ░░███████  ░███   ░░████████░░█████  ███░░██████ ████████ ░██  ░██░░██████ ███ ███░██ ███  ░██ ██████   ░░██ ░░████████ ███ ███
  ░░░░░░░   ░░░     ░░░░░░░░  ░░░░░  ░░░  ░░░░░░ ░░░░░░░░  ░░   ░░  ░░░░░░ ░░░ ░░░ ░░ ░░░   ░░ ░░░░░░     ░░   ░░░░░░░░ ░░░ ░░░


#==============================================================#
配置本地 YUM 源
#==============================================================#

[openEuler]
name=openEuler
baseurl=file:////mnt
enabled=1
gpgcheck=1
gpgkey=file:////mnt/RPM-GPG-KEY-openEuler

#==============================================================#
禁用防火墙
#==============================================================#

防火墙服务未启动，无需禁用。

#==============================================================#
禁用 SELinux
#==============================================================#

SELinux status:                 disabled

#==============================================================#
YUM 静默安装依赖包
#==============================================================#

bc-1.07.1-12.oe2203sp3.x86_64
binutils-2.37-24.oe2203sp3.x86_64
package compat-libcap1 is not installed
gcc-10.3.1-49.oe2203sp3.x86_64
gcc-c++-10.3.1-49.oe2203sp3.x86_64
package elfutils-libelf is not installed
package elfutils-libelf-devel is not installed
glibc-2.34-143.oe2203sp3.x86_64
glibc-devel-2.34-143.oe2203sp3.x86_64
libaio-0.3.113-9.oe2203sp3.x86_64
libaio-devel-0.3.113-9.oe2203sp3.x86_64
libgcc-10.3.1-49.oe2203sp3.x86_64
libstdc++-10.3.1-49.oe2203sp3.x86_64
libstdc++-devel-10.3.1-49.oe2203sp3.x86_64
libxcb-1.15-1.oe2203sp3.x86_64
libX11-1.7.2-8.oe2203sp3.x86_64
libXau-1.0.10-1.oe2203sp3.x86_64
libXi-1.8-2.oe2203sp3.x86_64
libXrender-0.9.10-12.oe2203sp3.x86_64
make-4.3-4.oe2203sp3.x86_64
net-tools-2.10-3.oe2203sp3.x86_64
smartmontools-7.2-2.oe2203sp3.x86_64
sysstat-12.5.4-9.oe2203sp3.x86_64
e2fsprogs-1.46.4-24.oe2203sp3.x86_64
package e2fsprogs-libs is not installed
unzip-6.0-50.oe2203sp3.x86_64
openssh-clients-8.8p1-23.oe2203sp3.x86_64
readline-8.1-3.oe2203sp3.x86_64
readline-devel-8.1-3.oe2203sp3.x86_64
psmisc-23.5-2.oe2203sp3.x86_64
ksh-2020.0.0-10.oe2203sp3.x86_64
nfs-utils-2.5.4-15.oe2203sp3.x86_64
tar-1.34-5.oe2203sp3.x86_64
package device-mapper-multipath is not installed
avahi-0.8-18.oe2203sp3.x86_64
ntp-4.2.8p15-13.oe2203sp3.x86_64
chrony-4.1-6.oe2203sp3.x86_64
libXtst-1.2.4-1.oe2203sp3.x86_64
libXrender-devel-0.9.10-12.oe2203sp3.x86_64
fontconfig-devel-2.13.94-3.oe2203sp3.x86_64
policycoreutils-3.3-8.oe2203sp3.x86_64
package policycoreutils-python is not installed
package librdmacm is not installed
package libnsl* is not installed
package libibverbs is not installed
package compat-openssl10 is not installed
policycoreutils-python-utils-3.3-8.oe2203sp3.noarch
package elfutils* is not installed
glibc-2.34-143.oe2203sp3.x86_64

#==============================================================#
配置主机名
#==============================================================#

openEuler02

#==============================================================#
配置 /etc/hosts 文件
#==============================================================#

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

## OracleBegin

## RAC1 IP's: openEuler01

## RAC1 Public IP
192.168.6.130 openEuler01
## RAC1 Virtual IP
192.168.6.132 openEuler01-vip
## RAC1 Private IP
1.1.1.1 openEuler01-priv

## RAC2 IP's: openEuler02

## RAC2 Public IP
192.168.6.131 openEuler02
## RAC2 Virtual IP
192.168.6.133 openEuler02-vip
## RAC2 Private IP
1.1.1.2 openEuler02-priv

## SCAN IP
192.168.6.134 openEuler-scan

#==============================================================#
创建用户和组
#==============================================================#

oracle 用户：

uid=54321(oracle) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba),54327(asmdba),54328(asmoper),54329(asmadmin)

grid 用户：

uid=11012(grid) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba),54327(asmdba),54328(asmoper),54329(asmadmin)


#==============================================================#
配置 Avahi-daemon 服务
#==============================================================#

○ avahi-daemon.service - Avahi mDNS/DNS-SD Stack
     Loaded: loaded (/usr/lib/systemd/system/avahi-daemon.service; disabled; vendor preset: enabled)
     Active: inactive (dead)
TriggeredBy: ○ avahi-daemon.socket

#==============================================================#
配置透明大页 && NUMA && 磁盘 IO 调度器
#==============================================================#

args="ro resume=/dev/mapper/openeuler-swap rd.lvm.lv=openeuler/root rd.lvm.lv=openeuler/swap cgroup_disable=files apparmor=0 crashkernel=512M rhgb quiet numa=off transparent_hugepage=never elevator=deadline"
-resume=/dev/mapper/openeuler-swap
-args="ro
args="ro resume=/dev/mapper/openeuler-swap rd.lvm.lv=openeuler/root rd.lvm.lv=openeuler/swap cgroup_disable=files apparmor=0 crashkernel=512M rhgb quiet numa=off transparent_hugepage=never elevator=deadline"
-rhgb
-crashkernel=512M

#==============================================================#
配置 sysctl.conf
#==============================================================#

kernel.sysrq = 0
net.ipv4.ip_forward = 0
net.ipv4.conf.all.send_redirects = 0
net.ipv4.conf.default.send_redirects = 0
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.default.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.default.accept_redirects = 0
net.ipv4.conf.all.secure_redirects = 0
net.ipv4.conf.default.secure_redirects = 0
net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.icmp_ignore_bogus_error_responses = 1
net.ipv4.conf.all.rp_filter = 1
net.ipv4.conf.default.rp_filter = 1
net.ipv4.tcp_syncookies = 1
kernel.dmesg_restrict = 1
net.ipv6.conf.all.accept_redirects = 0
net.ipv6.conf.default.accept_redirects = 0
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 7795097599
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576
vm.min_free_kbytes = 30449
net.ipv4.conf.ens33.rp_filter = 1
vm.swappiness = 10
kernel.panic_on_oops = 1
kernel.randomize_va_space = 2
kernel.numa_balancing = 0
net.ipv4.conf.ens37.rp_filter = 2

#==============================================================#
配置 RemoveIPC
#==============================================================#

[Login]
RemoveIPC=no

#==============================================================#
配置 /etc/security/limits.conf 和 /etc/pam.d/login
#==============================================================#

查看 /etc/security/limits.conf：

oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 32768
oracle soft nproc 2047
oracle hard nproc 16384
oracle hard memlock unlimited
oracle soft memlock unlimited
grid soft nofile 1024
grid hard nofile 65536
grid soft stack 10240
grid hard stack 32768
grid soft nproc 2047
grid hard nproc 16384

查看 /etc/pam.d/login 文件：

auth       substack     system-auth
auth       include      postlogin
account    required     pam_nologin.so
account    include      system-auth
password   include      system-auth
session    required     pam_selinux.so close
session    required     pam_loginuid.so
session    required     pam_selinux.so open
session    required     pam_namespace.so
session    optional     pam_keyinit.so force revoke
session    include      system-auth
session    include      postlogin
-session   optional     pam_ck_connector.so
session required pam_limits.so
session required /lib64/security/pam_limits.so

#==============================================================#
配置 /dev/shm
#==============================================================#

/dev/mapper/openeuler-root /                       ext4    defaults        1 1
UUID=3b8b94fa-6595-453b-938d-16b973646ae1 /boot                   ext4    defaults        1 2
/dev/mapper/openeuler-swap none                    swap    defaults        0 0
tmpfs /dev/shm tmpfs size=7612400k 0 0

#==============================================================#
Root 用户环境变量
#==============================================================#

if [ -f ~/.bashrc ]; then
        . ~/.bashrc
fi
PATH=$PATH:$HOME/bin
export PATH
alias so='su - oracle'
export PS1="[`whoami`@`hostname`:"'$PWD]$ '
alias sg='su - grid'
alias crsctl='/u01/app/19.3.0/grid/bin/crsctl'
alias srvctl='/u01/app/19.3.0/grid/bin/srvctl'

#==============================================================#
Oracle 用户环境变量
#==============================================================#

[ -f ~/.bashrc ] && . ~/.bashrc
umask 022
export TMP=/tmp
export TMPDIR=$TMP
export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=/u01/app/oracle/product/19.3.0/db
export ORACLE_TERM=xterm
export TNS_ADMIN=$ORACLE_HOME/network/admin
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export ORACLE_SID=lucifer2
export PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$ORACLE_HOME/perl/bin:$PATH
export PERL5LIB=$ORACLE_HOME/perl/lib
alias sas='sqlplus / as sysdba'
alias awr='sqlplus / as sysdba @?/rdbms/admin/awrrpt'
alias ash='sqlplus / as sysdba @?/rdbms/admin/ashrpt'
alias alert='vi $ORACLE_BASE/diag/rdbms/*/$ORACLE_SID/trace/alert_$ORACLE_SID.log'
export PS1="[`whoami`@`hostname`:"'$PWD]$ '
export CV_ASSUME_DISTID=OL7
alias sqlplus='rlwrap sqlplus'
alias rman='rlwrap rman'
alias adrci='rlwrap adrci'

#==============================================================#
Grid 用户环境变量
#==============================================================#

[ -f ~/.bashrc ] && . ~/.bashrc
umask 022
export TMP=/tmp
export TMPDIR=$TMP
export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
export ORACLE_BASE=/u01/app/grid
export ORACLE_HOME=/u01/app/19.3.0/grid
export ORACLE_TERM=xterm
export TNS_ADMIN=$ORACLE_HOME/network/admin
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export ORACLE_SID=+ASM2
export PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH
alias sas='sqlplus / as sysasm'
export PS1="[`whoami`@`hostname`:"'$PWD]$ '
export CV_ASSUME_DISTID=OL7
alias sqlplus='rlwrap sqlplus'
alias asmcmd='rlwrap asmcmd'
alias adrci='rlwrap adrci'

#==============================================================#
配置 multipath 多路径
#==============================================================#

438.420337 | asm_ocr_1: addmap [0 20971520 multipath 0 0 1 1 service-time 0 1 1 8:16 1]
438.549864 | asm_data_1: addmap [0 104857600 multipath 0 0 1 1 service-time 0 1 1 8:32 1]
create: asm_ocr_1 (2e87e4f535c397171) undef ROCKET,IMAGEFILE
size=10G features='0' hwhandler='0' wp=undef
`-+- policy='service-time 0' prio=1 status=undef
  `- 3:0:0:0 sdb 8:16 undef ready running
create: asm_data_1 (2f218dae15b551c5d) undef ROCKET,IMAGEFILE
size=50G features='0' hwhandler='0' wp=undef
`-+- policy='service-time 0' prio=1 status=undef
  `- 3:0:0:1 sdc 8:32 undef ready running

#==============================================================#
配置 UDEV 绑盘
#==============================================================#

KERNEL=="dm-*",ENV{DM_UUID}=="mpath-2e87e4f535c397171",SYMLINK+="asm_ocr_1",OWNER="grid",GROUP="asmadmin",MODE="0660"
KERNEL=="dm-*",ENV{DM_UUID}=="mpath-2f218dae15b551c5d",SYMLINK+="asm_data_1",OWNER="grid",GROUP="asmadmin",MODE="0660"

/dev/asm_data_1
/dev/asm_ocr_1

UDEV 配置完成!

配置 RAC 节点：192.168.6.131 结束!

#==============================================================#
静默解压缩 Grid 软件包
#==============================================================#

正在静默解压缩 Grid 软件包，请稍等：

.---- -. -. .  .   .        .
( .',----- - - ' '      '                                         __
 \_/      ;--:-          __--------------------___  ____=========_||___
__U__n_^_''__[.  ooo___  | |_!_||_!_||_!_||_!_| |   |..|_i_|..|_i_|..|
c(_ ..(_ ..(_ ..( /,,,,,,] | |___||___||___||___| |   |                |
,_\___________'_|,L______],|______________________|_i,!________________!_i
/;_(@)(@)==(@)(@)   (o)(o)      (o)^(o)--(o)^(o)          (o)(o)-(o)(o)
""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"'""


静默解压 Grid 软件安装包： /soft/LINUX.X64_193000_grid_home.zip

静默解压 OPatch 软件补丁包： /soft/p6880880_*.zip

#==============================================================#
静默解压 Oracle 软件包
#==============================================================#

正在静默解压缩 Oracle 软件包，请稍等：

.---- -. -. .  .   .        .
( .',----- - - ' '      '                                         __
 \_/      ;--:-          __--------------------___  ____=========_||___
__U__n_^_''__[.  ooo___  | |_!_||_!_||_!_||_!_| |   |..|_i_|..|_i_|..|
c(_ ..(_ ..(_ ..( /,,,,,,] | |___||___||___||___| |   |                |
,_\___________'_|,L______],|______________________|_i,!________________!_i
/;_(@)(@)==(@)(@)   (o)(o)      (o)^(o)--(o)^(o)          (o)(o)-(o)(o)
""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"'""


静默解压 Oracle 软件安装包： /soft/LINUX.X64_193000_db_home.zip

静默解压 OPatch 软件补丁包： /soft/p6880880_*.zip

静默解压 OJVM 软件补丁包： /soft/p35926646*.zip

#==============================================================#
Grid 安装静默文件
#==============================================================#

INVENTORY_LOCATION=/u01/app/oraInventory
oracle.install.option=CRS_CONFIG
ORACLE_BASE=/u01/app/grid
oracle.install.asm.OSDBA=asmdba
oracle.install.asm.OSOPER=asmoper
oracle.install.asm.OSASM=asmadmin
oracle.install.crs.config.gpnp.scanName=openEuler-scan
oracle.install.crs.config.gpnp.scanPort=1521
oracle.install.crs.config.clusterName=openEuler-cls
oracle.install.crs.config.gpnp.configureGNS=false
oracle.install.crs.config.clusterNodes=openEuler01:openEuler01-vip,openEuler02:openEuler02-vip
oracle.install.crs.config.networkInterfaceList=ens33:192.168.6.0:1,ens37:1.1.1.0:5
oracle.install.crs.config.useIPMI=false
oracle.install.asm.SYSASMPassword=oracle
oracle.install.asm.diskGroup.name=OCR
oracle.install.asm.diskGroup.redundancy=EXTERNAL
oracle.install.asm.diskGroup.disks=/dev/asm_ocr_1
oracle.install.asm.diskGroup.diskDiscoveryString=/dev/asm*
oracle.install.asm.monitorPassword=oracle
oracle.install.crs.config.ClusterConfiguration=STANDALONE
oracle.install.crs.config.configureAsExtendedCluster=false
oracle.install.crs.configureGIMR=false
oracle.install.asm.storageOption=ASM
oracle.install.asm.diskGroup.AUSize=4
oracle.install.asm.configureAFD=false
oracle.install.crs.config.ignoreDownNodes=false
oracle.install.config.managementOption=NONE
oracle.install.crs.rootconfig.executeRootScript=false
oracle.install.responseFileVersion=/oracle/install/rspfmt_crsinstall_response_schema_v19.0.0
oracle.install.crs.config.scanType=LOCAL_SCAN

#==============================================================#
静默安装 Grid 软件
#==============================================================#

Preparing the home to patch...
Applying the patch /soft/35940989...
Successfully applied the patch.
The log can be found at: /tmp/GridSetupActions2024-03-21_10-31-09AM/installerPatchActions_2024-03-21_10-31-09AM.log
Launching Oracle Grid Infrastructure Setup Wizard...

[WARNING] [INS-30011] The SYS password entered does not conform to the Oracle recommended standards.
   CAUSE: Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
   ACTION: Provide a password that conforms to the Oracle recommended standards.
[WARNING] [INS-30011] The ASMSNMP password entered does not conform to the Oracle recommended standards.
   CAUSE: Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
   ACTION: Provide a password that conforms to the Oracle recommended standards.
The response file for this session can be found at:
 /u01/app/19.3.0/grid/install/response/grid_2024-03-21_10-31-09AM.rsp

You can find the log of this install session at:
 /tmp/GridSetupActions2024-03-21_10-31-09AM/gridSetupActions2024-03-21_10-31-09AM.log

As a root user, execute the following script(s):
        1. /u01/app/oraInventory/orainstRoot.sh
        2. /u01/app/19.3.0/grid/root.sh

Execute /u01/app/oraInventory/orainstRoot.sh on the following nodes:
[openEuler01, openEuler02]
Execute /u01/app/19.3.0/grid/root.sh on the following nodes:
[openEuler01, openEuler02]

Run the script on the local node first. After successful completion, you can start the script in parallel on all other nodes.

Successfully Setup Software.
As install user, execute the following command to complete the configuration.
        /u01/app/19.3.0/grid/gridSetup.sh -executeConfigTools -responseFile /soft/grid.rsp [-silent]


Moved the install session logs to:
 /u01/app/oraInventory/logs/GridSetupActions2024-03-21_10-31-09AM

#==============================================================#
执行 root 脚本
#==============================================================#

节点 192.168.6.130 ：

Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
Check /u01/app/19.3.0/grid/install/root_openEuler01_2024-03-21_11-00-24-542542904.log for the output of root script

节点 192.168.6.131 ：

Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
Check /u01/app/19.3.0/grid/install/root_openEuler02_2024-03-21_11-09-02-281159664.log for the output of root script

#==============================================================#
Grid 软件版本
#==============================================================#


SQL*Plus: Release 19.0.0.0.0 - Production
Version 19.22.0.0.0


#==============================================================#
Grid 补丁信息
#==============================================================#

36115038;TOMCAT RELEASE UPDATE 19.0.0.0.0 (36115038)
35967489;OCW RELEASE UPDATE 19.22.0.0.0 (35967489)
35956421;ACFS RELEASE UPDATE 19.22.0.0.0 (35956421)
35943157;Database Release Update : 19.22.0.0.240116 (35943157)
33575402;DBWLM RELEASE UPDATE 19.0.0.0.0 (33575402)

OPatch succeeded.


#==============================================================#
ASM 磁盘组创建
#==============================================================#

State    Type    Rebal  Sector  Logical_Sector  Block       AU  Total_MB  Free_MB  Req_mir_free_MB  Usable_file_MB  Offline_disks  Voting_files  Name
MOUNTED  EXTERN  N         512             512   4096  1048576     51200    51092                0           51092              0             N  DATA/
MOUNTED  EXTERN  N         512             512   4096  4194304     10240     9900                0            9900              0             Y  OCR/

#==============================================================#
Oracle 安装静默文件
#==============================================================#

oracle.install.option=INSTALL_DB_SWONLY
UNIX_GROUP_NAME=oinstall
INVENTORY_LOCATION=/u01/app/oraInventory
ORACLE_BASE=/u01/app/oracle
oracle.install.db.InstallEdition=EE
oracle.install.db.DBA_GROUP=dba
oracle.install.db.OPER_GROUP=oper
oracle.install.db.CLUSTER_NODES=openEuler01,openEuler02
oracle.install.db.OSBACKUPDBA_GROUP=backupdba
oracle.install.db.OSDGDBA_GROUP=dgdba
oracle.install.db.OSKMDBA_GROUP=kmdba
oracle.install.db.OSRACDBA_GROUP=racdba
oracle.install.db.rootconfig.executeRootScript=false
oracle.install.db.rootconfig.configMethod=
oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v19.0.0

#==============================================================#
静默安装数据库软件
#==============================================================#

Preparing the home to patch...
Applying the patch /soft/35940989...
Successfully applied the patch.
The log can be found at: /u01/app/oraInventory/logs/InstallActions2024-03-21_11-16-04AM/installerPatchActions_2024-03-21_11-16-04AM.log
Launching Oracle Database Setup Wizard...

[WARNING] [INS-13013] Target environment does not meet some mandatory requirements.
   CAUSE: Some of the mandatory prerequisites are not met. See logs for details. /u01/app/oraInventory/logs/InstallActions2024-03-21_11-16-04AM/installActions2024-03-21_11-16-04AM.log
   ACTION: Identify the list of failed prerequisite checks from the log: /u01/app/oraInventory/logs/InstallActions2024-03-21_11-16-04AM/installActions2024-03-21_11-16-04AM.log. Then either from the log file or from installation manual find the appropriate configuration to meet the prerequisites and fix it manually.
The response file for this session can be found at:
 /u01/app/oracle/product/19.3.0/db/install/response/db_2024-03-21_11-16-04AM.rsp

You can find the log of this install session at:
 /u01/app/oraInventory/logs/InstallActions2024-03-21_11-16-04AM/installActions2024-03-21_11-16-04AM.log

As a root user, execute the following script(s):
        1. /u01/app/oracle/product/19.3.0/db/root.sh

Execute /u01/app/oracle/product/19.3.0/db/root.sh on the following nodes:
[openEuler01, openEuler02]


Successfully Setup Software with warning(s).

#==============================================================#
执行 root 脚本
#==============================================================#

节点 192.168.6.130 ：

Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
Check /u01/app/oracle/product/19.3.0/db/install/root_openEuler01_2024-03-21_11-56-19-366497121.log for the output of root script

节点 192.168.6.131 ：

Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
Check /u01/app/oracle/product/19.3.0/db/install/root_openEuler02_2024-03-21_11-56-20-424984369.log for the output of root script

#==============================================================#
OJVM 补丁安装
#==============================================================#

节点 192.168.6.130 ：

Oracle Interim Patch Installer version 12.2.0.1.40
Copyright (c) 2024, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /u01/app/oracle/product/19.3.0/db
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.3.0/db/oraInst.loc
OPatch version    : 12.2.0.1.40
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.3.0/db/cfgtoollogs/opatch/opatch2024-03-21_11-56-22AM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.
Oracle Interim Patch Installer version 12.2.0.1.40
Copyright (c) 2024, Oracle Corporation.  All rights reserved.


Oracle Home       : /u01/app/oracle/product/19.3.0/db
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.3.0/db/oraInst.loc
OPatch version    : 12.2.0.1.40
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.3.0/db/cfgtoollogs/opatch/opatch2024-03-21_11-56-40AM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   35926646

Do you want to proceed? [y|n]
Y (auto-answered by -silent)
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/u01/app/oracle/product/19.3.0/db')


Is the local system ready for patching? [y|n]
Y (auto-answered by -silent)
User Responded with: Y
Backing up files...
Applying interim patch '35926646' to OH '/u01/app/oracle/product/19.3.0/db'

Patching component oracle.javavm.server, 19.0.0.0.0...

Patching component oracle.javavm.server.core, 19.0.0.0.0...

Patching component oracle.rdbms.dbscripts, 19.0.0.0.0...

Patching component oracle.rdbms, 19.0.0.0.0...

Patching component oracle.javavm.client, 19.0.0.0.0...
Patch 35926646 successfully applied.
Log file location: /u01/app/oracle/product/19.3.0/db/cfgtoollogs/opatch/opatch2024-03-21_11-56-40AM_1.log

OPatch succeeded.

节点 192.168.6.131 ：

Oracle Interim Patch Installer version 12.2.0.1.40
Copyright (c) 2024, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /u01/app/oracle/product/19.3.0/db
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.3.0/db/oraInst.loc
OPatch version    : 12.2.0.1.40
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.3.0/db/cfgtoollogs/opatch/opatch2024-03-21_11-59-15AM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.
Oracle Interim Patch Installer version 12.2.0.1.40
Copyright (c) 2024, Oracle Corporation.  All rights reserved.


Oracle Home       : /u01/app/oracle/product/19.3.0/db
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.3.0/db/oraInst.loc
OPatch version    : 12.2.0.1.40
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.3.0/db/cfgtoollogs/opatch/opatch2024-03-21_11-59-33AM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   35926646

Do you want to proceed? [y|n]
Y (auto-answered by -silent)
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/u01/app/oracle/product/19.3.0/db')


Is the local system ready for patching? [y|n]
Y (auto-answered by -silent)
User Responded with: Y
Backing up files...
Applying interim patch '35926646' to OH '/u01/app/oracle/product/19.3.0/db'

Patching component oracle.javavm.server, 19.0.0.0.0...

Patching component oracle.javavm.server.core, 19.0.0.0.0...

Patching component oracle.rdbms.dbscripts, 19.0.0.0.0...

Patching component oracle.rdbms, 19.0.0.0.0...

Patching component oracle.javavm.client, 19.0.0.0.0...
Patch 35926646 successfully applied.
Log file location: /u01/app/oracle/product/19.3.0/db/cfgtoollogs/opatch/opatch2024-03-21_11-59-33AM_1.log

OPatch succeeded.

#==============================================================#
Oracle 软件版本
#==============================================================#


SQL*Plus: Release 19.0.0.0.0 - Production
Version 19.22.0.0.0


#==============================================================#
Oracle 补丁信息
#==============================================================#

35926646;OJVM RELEASE UPDATE: 19.22.0.0.240116 (35926646)
35967489;OCW RELEASE UPDATE 19.22.0.0.0 (35967489)
35943157;Database Release Update : 19.22.0.0.240116 (35943157)

OPatch succeeded.


#==============================================================#
静默建库命令
#==============================================================#

dbca -silent -createDatabase \
-ignorePrereqFailure \
-templateName General_Purpose.dbc \
-responseFile NO_VALUE \
-gdbName lucifer \
-sid lucifer \
-sysPassword oracle \
-systemPassword oracle \
-redoLogFileSize 100 \
-diskGroupName +DATA \
-storageType ASM -enableArchive true \
-archiveLogDest +DATA \
-databaseConfigType RAC \
-nodeinfo openEuler01,openEuler02 \
-characterset AL32UTF8 \
-nationalCharacterSet AL16UTF16 \
-emConfiguration NONE \
-automaticMemoryManagement false \
-totalMemory 3716 \
-databaseType OLTP \
-createAsContainerDatabase false

#==============================================================#
创建数据库
#==============================================================#

[WARNING] [DBT-06208] The 'SYS' password entered does not conform to the Oracle recommended standards.
   CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
   ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
[WARNING] [DBT-06208] The 'SYSTEM' password entered does not conform to the Oracle recommended standards.
   CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
   ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
Prepare for db operation
8% complete
Copying database files
33% complete
Creating and starting Oracle instance
34% complete
35% complete
39% complete
42% complete
45% complete
50% complete
Creating cluster database views
52% complete
67% complete
Completing Database Creation
71% complete
73% complete
75% complete
Executing Post Configuration Actions
100% complete
Database creation complete. For details check the logfiles at:
 /u01/app/oracle/cfgtoollogs/dbca/lucifer.
Database Information:
Global Database Name:lucifer
System Identifier(SID) Prefix:lucifer
Look at the log file "/u01/app/oracle/cfgtoollogs/dbca/lucifer/lucifer.log" for further details.

#==============================================================#
配置 OMF && 优化 RMAN
#==============================================================#


Recovery Manager: Release 19.0.0.0.0 - Production on Thu Mar 21 12:34:23 2024
Version 19.22.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: LUCIFER (DBID=4020080529)

RMAN>
using target database control file instead of recovery catalog
new RMAN configuration parameters:
CONFIGURE SNAPSHOT CONTROLFILE NAME TO '+DATA/snapcf_fdcdb1.f';
new RMAN configuration parameters are successfully stored

RMAN>

Recovery Manager complete.


#==============================================================#
配置控制文件复用
#==============================================================#


Recovery Manager: Release 19.0.0.0.0 - Production on Thu Mar 21 12:36:21 2024
Version 19.22.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: LUCIFER (not mounted)

RMAN>
Starting restore at 21-MAR-24
using target database control file instead of recovery catalog
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=133 instance=lucifer1 device type=DISK

channel ORA_DISK_1: copied control file copy
Finished restore at 21-MAR-24


Recovery Manager complete.

数据库控制文件：


NAME
----------------------------------------------------------------------------------------------------
+DATA/LUCIFER/CONTROLFILE/current.261.1164197265
+DATA/LUCIFER/CONTROLFILE/control02.ctl

#==============================================================#
配置在线重做日志
#==============================================================#

数据库在线重做日志文件：


   THREAD#     GROUP# MEMBER                                                                                                                      size(M)
---------- ---------- ------------------------------------------------------------------------------------------------------------------------ ----------
         1          1 +DATA/LUCIFER/ONLINELOG/group_1.262.1164197267                                                                                  100
         1          2 +DATA/LUCIFER/ONLINELOG/group_2.263.1164197267                                                                                  100
         1         11 +DATA/LUCIFER/ONLINELOG/group_11.274.1164199055                                                                                 100
         1         12 +DATA/LUCIFER/ONLINELOG/group_12.275.1164199057                                                                                 100
         1         13 +DATA/LUCIFER/ONLINELOG/group_13.276.1164199059                                                                                 100
         1         14 +DATA/LUCIFER/ONLINELOG/group_14.277.1164199061                                                                                 100
         1         15 +DATA/LUCIFER/ONLINELOG/group_15.278.1164199065                                                                                 100
         2          3 +DATA/LUCIFER/ONLINELOG/group_3.266.1164198731                                                                                  100
         2          4 +DATA/LUCIFER/ONLINELOG/group_4.267.1164198733                                                                                  100
         2         21 +DATA/LUCIFER/ONLINELOG/group_21.279.1164199067                                                                                 100
         2         22 +DATA/LUCIFER/ONLINELOG/group_22.280.1164199069                                                                                 100
         2         23 +DATA/LUCIFER/ONLINELOG/group_23.281.1164199071                                                                                 100
         2         24 +DATA/LUCIFER/ONLINELOG/group_24.282.1164199077                                                                                 100
         2         25 +DATA/LUCIFER/ONLINELOG/group_25.283.1164199079                                                                                 100

#==============================================================#
配置 RMAN 备份任务
#==============================================================#

## OracleBegin
00 02 * * * /home/oracle/scripts/del_arch.sh
#00 00 * * 0 /home/oracle/scripts/dbbackup_lv0.sh
#00 00 * * 1,2,3,4,5,6 /home/oracle/scripts/dbbackup_lv1.sh

#==============================================================#
配置 glogin.sql
#==============================================================#

define _editor=vi
set serveroutput on size 1000000
set pagesize 9999
set long 99999
set trimspool on
col name format a80
set termout off
define gname=idle
column global_name new_value gname
select lower(user) || '@' || substr( global_name, 1, decode( dot, 0, length(global_name), dot-1) ) global_name from (select global_name, instr(global_name,'.') dot from global_name );
ALTER SESSION SET nls_date_format = 'YYYY-MM-DD HH24:MI:SS';
set sqlprompt '&gname _DATE> '
set termout on

#==============================================================#
优化数据库参数
#==============================================================#

数据库参数：


NAME                                               SID        SPVALUE                                                                          VALUE
-------------------------------------------------- ---------- -------------------------------------------------------------------------------- --------------------------------------------------------------------------------
_b_tree_bitmap_plans                               *          FALSE                                                                            FALSE
_datafile_write_errors_crash_instance              *          FALSE                                                                            FALSE
audit_file_dest                                    *          /u01/app/oracle/admin/lucifer/adump                                              /u01/app/oracle/admin/lucifer/adump
audit_trail                                        *          NONE                                                                             DB
cluster_database                                   *          true                                                                             TRUE
compatible                                         *          19.0.0                                                                           19.0.0
control_file_record_keep_time                      *          31                                                                               31
db_block_size                                      *          8192                                                                             8192
db_create_file_dest                                *          +DATA                                                                            +DATA
db_file_multiblock_read_count                      *                                                                                           128
db_files                                           *          5000                                                                             200
db_name                                            *          lucifer                                                                          lucifer
db_writer_processes                                *                                                                                           1
deferred_segment_creation                          *          FALSE                                                                            FALSE
diagnostic_dest                                    *          /u01/app/oracle                                                                  /u01/app/oracle
dispatchers                                        *          (PROTOCOL=TCP) (SERVICE=luciferXDB)                                              (PROTOCOL=TCP) (SERVICE=luciferXDB)
event                                              *          10949 trace name context forever,level 1
event                                              *          28401 trace name context forever,level 1
fast_start_parallel_rollback                       *                                                                                           LOW
instance_mode                                      *          read-only                                                                        READ-WRITE
log_archive_dest_1                                 *          location=+DATA                                                                   location=+DATA
log_archive_format                                 *          %t_%s_%r.dbf                                                                     %t_%s_%r.dbf
max_dump_file_size                                 *                                                                                           unlimited
max_string_size                                    *                                                                                           STANDARD
nls_language                                       *          AMERICAN                                                                         AMERICAN
nls_territory                                      *          AMERICA                                                                          AMERICA
open_cursors                                       *          1000                                                                             300
optimizer_adaptive_plans                           *                                                                                           TRUE
optimizer_adaptive_statistics                      *                                                                                           FALSE
optimizer_index_caching                            *                                                                                           0
optimizer_mode                                     *                                                                                           ALL_ROWS
parallel_force_local                               *          TRUE                                                                             FALSE
parallel_max_servers                               *          64                                                                               64
pga_aggregate_target                               *          1246756864                                                                       780140544
processes                                          *          2000                                                                             640
remote_login_passwordfile                          *          exclusive                                                                        EXCLUSIVE
session_cached_cursors                             *          300                                                                              50
sessions                                           *                                                                                           984
sga_max_size                                       *          4988076032                                                                       3120562176
sga_target                                         *          4988076032                                                                       3120562176
spfile                                             *                                                                                           +DATA/LUCIFER/PARAMETERFILE/spfile.269.1164198737
statistics_level                                   *                                                                                           TYPICAL
undo_retention                                     *          10800                                                                            900

恭喜！Oracle RAC 安装成功，现在是否重启主机：[Y/N] N
