数据库的并行度使用需要很谨慎，很容易造成数据库运行缓慢以及严重的等待。

比较常见的由于 并行度 设置错误导致的等待事件：

  • PX Deq Credit: send blkd
  • PX Deq Credit: need buffer

错误的并行度设置往往可能是由于在创建索引或者重建索引时开启并行度创建，后来忘记关闭导致！

1
2
create index <indexname> on <table>（<columns>） parallel 4;
alter index <indexname> rebuild parallel 4;

✅ 使用并行度设置后的正确操作：

1
alter index <indexname> noparallel;

当我们遇到这样的等待事件很严重时，可以使用下方脚本快速查看是否存在不正确的并行度设置！

📢 注意： 以下脚本已经过内部测试，但是，不保证它对您有用。确保在使用前在测试环境中运行它。

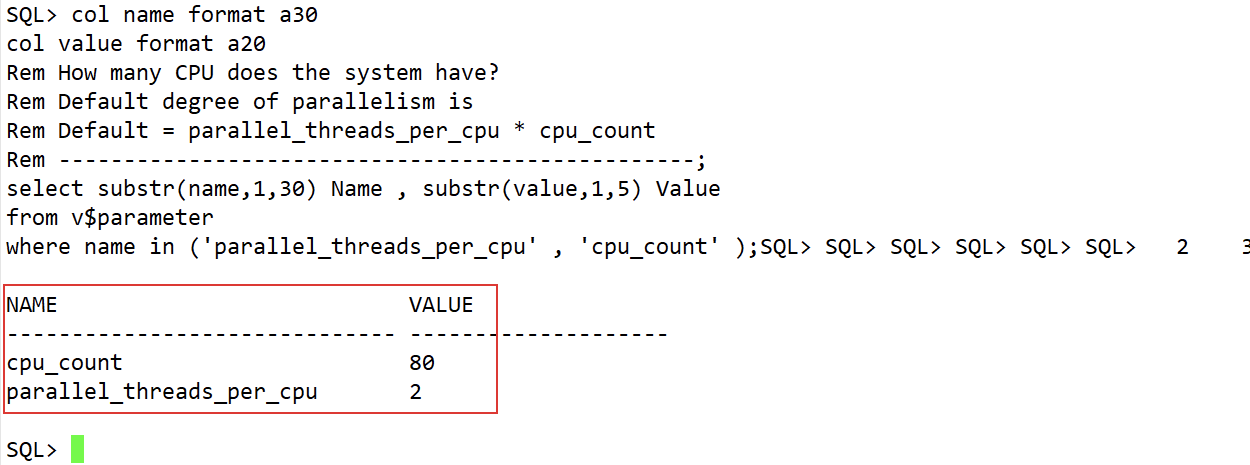

该 SQL 查询当前数据库主机 CPU 数以及每个 CPU 默认的并行度：

1
2
3
4
5
6
7
8
9
col name format a30
col value format a20
Rem How many CPU does the system have?
Rem Default degree of parallelism is
Rem Default = parallel_threads_per_cpu * cpu_count
Rem -------------------------------------------------;
select substr(name,1,30) Name , substr(value,1,5) Value
from v$parameter
where name in ('parallel_threads_per_cpu' , 'cpu_count' );

该 SQL 检查当前数据库中所有用户中存在不同并行度的 表：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
set pagesize1000
col owner format a30
col degree format a10
col instances format a10
Rem Normally DOP := degree * Instances
Rem See the following Note for the exact formula.
Rem Note:260845.1 Old and new Syntax for setting Degree of Parallelism
Rem How many tables a user have with different DOPs
Rem -------------------------------------------------------;
select * from (
select substr(owner,1,15) Owner , ltrim(degree) Degree,
ltrim(instances) Instances,
count(*) "Num Tables" , 'Parallel'
from all_tables
where ( trim(degree) != '1' and trim(degree) != '0' ) or
( trim(instances) != '1' and trim(instances) != '0' )
group by owner, degree , instances
union
select substr(owner,1,15) owner , '1' , '1' ,
count(*) , 'Serial'
from all_tables
where ( trim(degree) = '1' or trim(degree) = '0' ) and
( trim(instances) = '1' or trim(instances) = '0' )
group by owner
)
order by owner;

📢 注意： 如果查询出 Parallel 列的值为 Serial 就证明并行度都是 1，为正常。

该 SQL 检查当前数据库中所有用户中存在不同并行度的 索引：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
set pagesize1000
Rem How many indexes a user have with different DOPs
Rem ---------------------------------------------------;
select * from (
select substr(owner,1,15) Owner ,
substr(trim(degree),1,7) Degree ,
substr(trim(instances),1,9) Instances ,
count(*) "Num Indexes",
'Parallel'
from all_indexes
where ( trim(degree) != '1' and trim(degree) != '0' ) or
( trim(instances) != '1' and trim(instances) != '0' )
group by owner, degree , instances
union
select substr(owner,1,15) owner , '1' , '1' ,
count(*) , 'Serial'
from all_indexes
where ( trim(degree) = '1' or trim(degree) = '0' ) and
( trim(instances) = '1' or trim(instances) = '0' )
group by owner
)
order by owner;

📢 注意： 如果查询出 Parallel 列的值为 Serial 就证明并行度都是 1，为正常。

该 SQL 检查具有不同 DOP 的索引的表：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
col table_name format a35
col index_name format a35
Rem Tables that have Indexes with not the same DOP
Rem !!!!! This command can take some time to execute !!!
Rem ---------------------------------------------------;
set lines 150
select substr(t.owner,1,15) Owner ,
t.table_name ,
substr(trim(t.degree),1,7) Degree ,
substr(trim(t.instances),1,9) Instances,
i.index_name ,
substr(trim(i.degree),1,7) Degree ,
substr(trim(i.instances),1,9) Instances
from all_indexes i,
all_tables t
where ( trim(i.degree) != trim(t.degree) or
trim(i.instances) != trim(t.instances) ) and
i.owner = t.owner and
i.table_name = t.table_name;

📢 注意：查询结果为空代表没有不同 DOP 的索引的表，正常。

本文的脚本来自于 MOS：

Script to Report the Degree of Parallelism DOP on Tables and Indexes (Doc ID 270837.1)
