前言

使用 vagrant 的前提是要有 box 镜像盒子来初始化系统，网上有很多 box 可以下载，但是用自己的不是更香吗？自己动手，丰衣足食！

环境准备

软件准备

首先需要安装 vagrant + virtualbox + packer ，具体安装教程，请参考文章：☀️ 福利向：⚡️万字图文⚡️ 带你 Vagrant 从入门到超神！❤️

下载系统镜像

下载 centos 7.9 安装包，下载地址：精心整理Linux各版本安装包（包括Centos、Redhat、Oracle Linux），附下载链接🔗

这里使用最小的镜像源即可，在 https://mirrors.edge.kernel.org/centos/7.9.2009/isos/x86_64/ 可以直接下载。

这里的校验码记录一下： 07b94e6b1a0b0260b94c83d6bb76b26bf7a310dc78d7a9c7432809fb9bc6194a

下载打包源码

下载打包模板源码：

1	git clone https://hub.fastgit.org/chef/bento.git

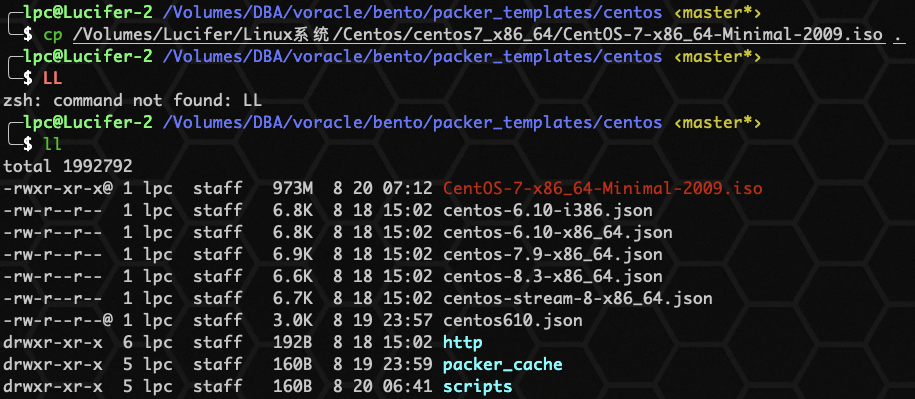

将系统镜像文件拷贝至 bento/packer_templates/centos 目录下：

确认环境准备好之后，可以开始进行打包。

开始打包

自定义json文件

使用目录中的 centos-7.9-x86_64.json 文件，复制为 centos79.json ，进行自定义修改：

{
  "builders": [
    {
      "boot_command": [
        "<up><wait><tab> text ks=http://{{ .HTTPIP }}:{{ .HTTPPort }}/{{user `ks_path`}}<enter><wait>"
      ],
      "boot_wait": "5s",
      "cpus": "{{ user `cpus` }}",
      "disk_size": "{{user `disk_size`}}",
      "guest_additions_path": "VBoxGuestAdditions_{{.Version}}.iso",
      "guest_additions_url": "{{ user `guest_additions_url` }}",
      "guest_os_type": "RedHat_64",
      "hard_drive_interface": "sata",
      "headless": "{{ user `headless` }}",
      "http_directory": "{{user `http_directory`}}",
      "iso_checksum": "{{user `iso_checksum`}}",
      "iso_url": "{{user `mirror`}}/{{user `mirror_directory`}}/{{user `iso_name`}}",
      "memory": "{{ user `memory` }}",
      "output_directory": "{{ user `build_directory` }}/packer-{{user `template`}}-virtualbox",
      "shutdown_command": "echo 'vagrant' | sudo -S /sbin/halt -h -p",
      "ssh_password": "vagrant",
      "ssh_port": 22,
      "ssh_timeout": "10000s",
      "ssh_username": "vagrant",
      "type": "virtualbox-iso",
      "virtualbox_version_file": ".vbox_version",
      "vm_name": "{{ user `template` }}"
    }
  ],
  "post-processors": [
    {
      "output": "{{ user `build_directory` }}/{{user `box_basename`}}.{{.Provider}}.box",
      "type": "vagrant"
    }
  ],
  "provisioners": [
    {
      "environment_vars": [
        "HOME_DIR=/home/vagrant",
        "http_proxy={{user `http_proxy`}}",
        "https_proxy={{user `https_proxy`}}",
        "no_proxy={{user `no_proxy`}}"
      ],
      "execute_command": "echo 'vagrant' | {{.Vars}} sudo -S -E sh -eux '{{.Path}}'",
      "expect_disconnect": true,
      "scripts": [
        "{{template_dir}}/scripts/update.sh",
        "{{template_dir}}/../_common/motd.sh",
        "{{template_dir}}/../_common/sshd.sh",
        "{{template_dir}}/scripts/networking.sh",
        "{{template_dir}}/../_common/vagrant.sh",
        "{{template_dir}}/../_common/virtualbox.sh",
        "{{template_dir}}/../_common/vmware.sh",
        "{{template_dir}}/../_common/parallels.sh",
        "{{template_dir}}/scripts/cleanup.sh",
        "{{template_dir}}/../_common/minimize.sh"
      ],
      "type": "shell"
    }
  ],
  "variables": {
    "box_basename": "centos7.9",
    "build_directory": "../../builds",
    "build_timestamp": "{{isotime \"20210820071500\"}}",
    "cpus": "2",
    "disk_size": "65536",
    "git_revision": "__unknown_git_revision__",
    "guest_additions_url": "",
    "headless": "",
    "http_directory": "{{template_dir}}/http",
    "http_proxy": "{{env `http_proxy`}}",
    "https_proxy": "{{env `https_proxy`}}",
    "hyperv_generation": "1",
    "hyperv_switch": "bento",
    "iso_checksum": "07b94e6b1a0b0260b94c83d6bb76b26bf7a310dc78d7a9c7432809fb9bc6194a",
    "iso_name": "CentOS-7-x86_64-Minimal-2009.iso",
    "ks_path": "7/ks.cfg",
    "memory": "2048",
    "mirror": "",
    "mirror_directory": "Volumes/DBA/voracle/bento/packer_templates/centos",
    "name": "centos7.9",
    "no_proxy": "{{env `no_proxy`}}",
    "template": "centos-7.9-x86_64",
    "version": "TIMESTAMP"
  }
}

📢 注意：以下修改两个脚本，提前排坑。

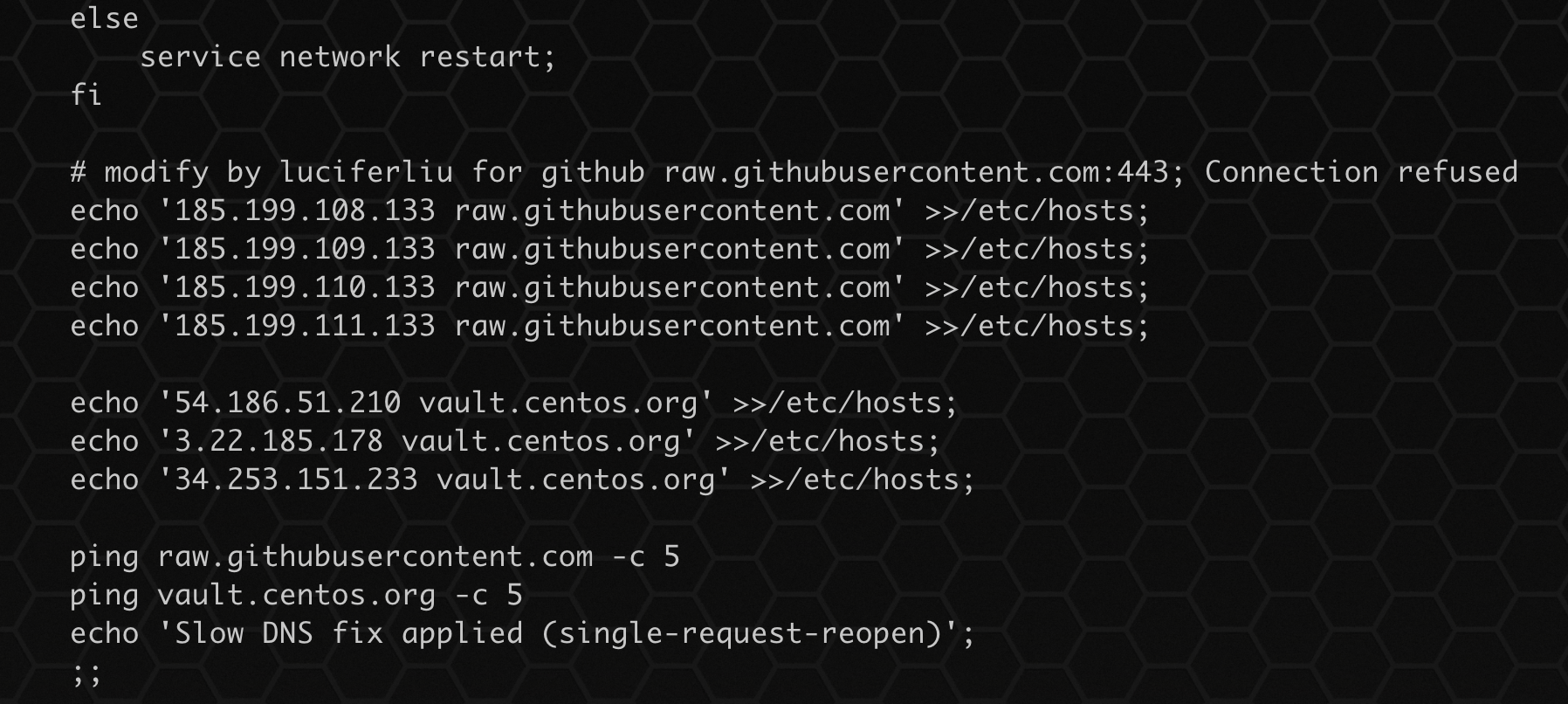

修改 networking.sh 脚本

脚本位于 centos 中，../centos/scripts/networking.sh，由于无法访问 github ，因此 /etc/hosts 需要增加 github ip：

# modify by luciferliu for github raw.githubusercontent.com:443; Connection refused
echo '185.199.108.133 raw.githubusercontent.com' >>/etc/hosts;
echo '185.199.109.133 raw.githubusercontent.com' >>/etc/hosts;
echo '185.199.110.133 raw.githubusercontent.com' >>/etc/hosts;
echo '185.199.111.133 raw.githubusercontent.com' >>/etc/hosts;

echo '54.186.51.210 vault.centos.org' >>/etc/hosts;
echo '3.22.185.178 vault.centos.org' >>/etc/hosts;
echo '34.253.151.233 vault.centos.org' >>/etc/hosts;

ping raw.githubusercontent.com -c 5
ping vault.centos.org -c 5

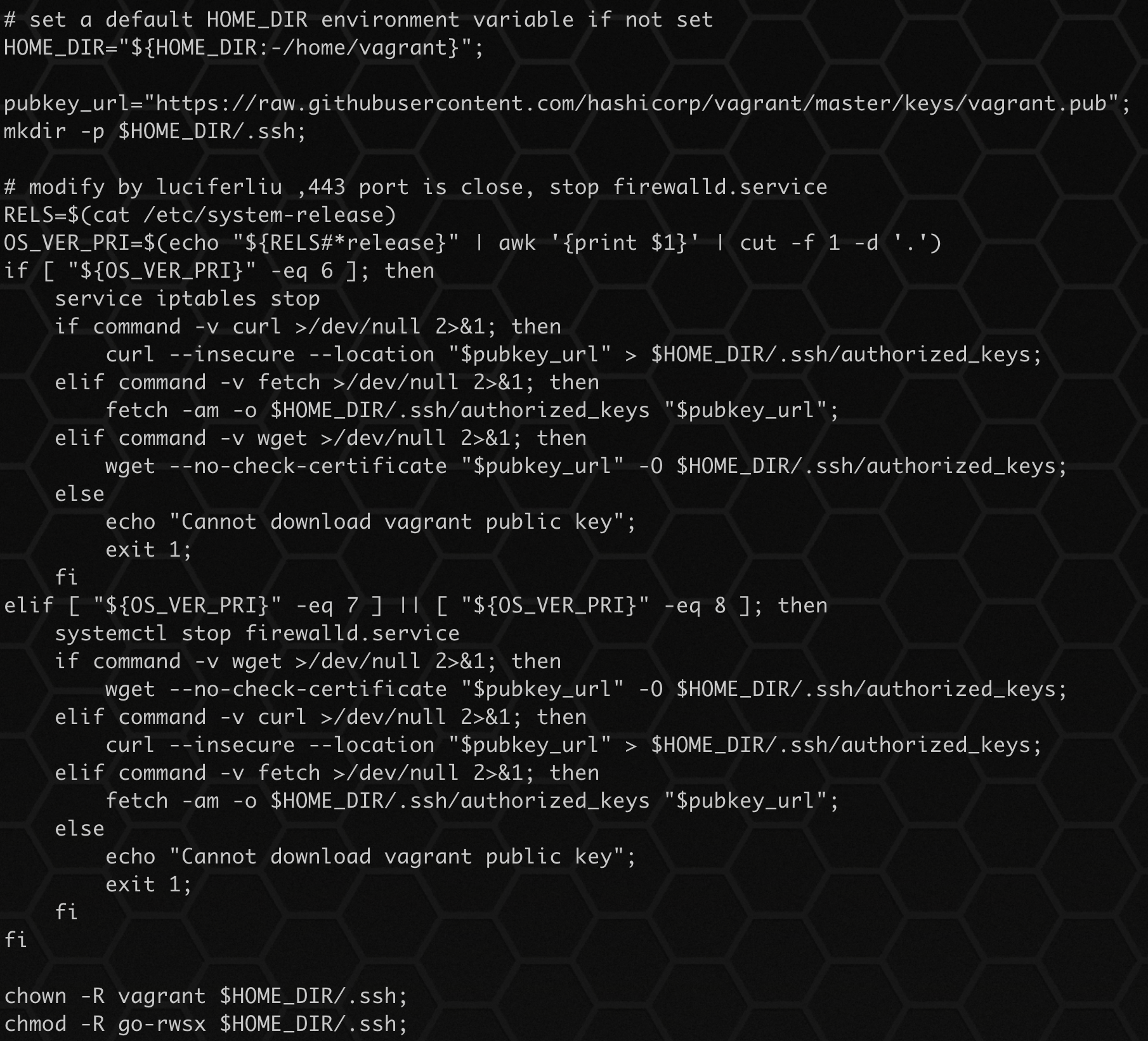

修改 vagrant.sh 脚本

脚本位于 bento/packer_templates/_common 目录下，由于未关闭防火墙，443端口无法访问，因此一直报错，手动关闭防火墙：

pubkey_url="https://raw.githubusercontent.com/hashicorp/vagrant/master/keys/vagrant.pub";
mkdir -p $HOME_DIR/.ssh;

# modify by luciferliu ,443 port is close, stop firewalld.service
RELS=$(cat /etc/system-release)
OS_VER_PRI=$(echo "${RELS#*release}" | awk '{print $1}' | cut -f 1 -d '.')
if [ "${OS_VER_PRI}" -eq 6 ]; then
    service iptables stop
    if command -v curl >/dev/null 2>&1; then
        curl --insecure --location "$pubkey_url" > $HOME_DIR/.ssh/authorized_keys;
    elif command -v fetch >/dev/null 2>&1; then
        fetch -am -o $HOME_DIR/.ssh/authorized_keys "$pubkey_url";
    elif command -v wget >/dev/null 2>&1; then
        wget --no-check-certificate "$pubkey_url" -O $HOME_DIR/.ssh/authorized_keys;
    else
        echo "Cannot download vagrant public key";
        exit 1;
    fi
elif [ "${OS_VER_PRI}" -eq 7 ] || [ "${OS_VER_PRI}" -eq 8 ]; then
    systemctl stop firewalld.service
    if command -v wget >/dev/null 2>&1; then
        wget --no-check-certificate "$pubkey_url" -O $HOME_DIR/.ssh/authorized_keys;
    elif command -v curl >/dev/null 2>&1; then
        curl --insecure --location "$pubkey_url" > $HOME_DIR/.ssh/authorized_keys;
    elif command -v fetch >/dev/null 2>&1; then
        fetch -am -o $HOME_DIR/.ssh/authorized_keys "$pubkey_url";
    else
        echo "Cannot download vagrant public key";
        exit 1;
    fi
fi
